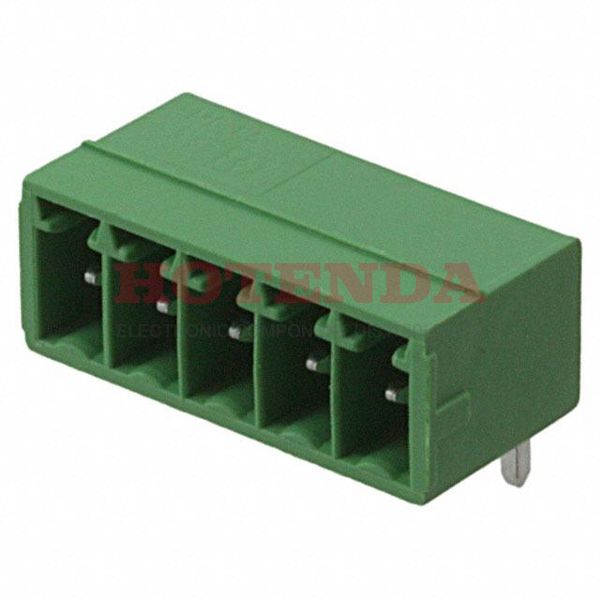

Name: 1844249
Brand: Phoenix Contact
SKU: 1844249
Price: 2.58000 USD
Availability: InStock

new-10%

1844249

Manufacturer part number:1844249

Manufacturer:Phoenix Contact

Description:1844249 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1844249 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Material	PBT
Housing Material	Polybutylene Terephthalate (PBT)
Weight	113.398093g
Packaging	Bulk
Published	2006
Series	COMBICON MC
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Color	Green
Number of Rows	1
Gender	Male
Voltage - Rated	160V
Voltage - Rated DC	640mV
Pitch	0.138 3.50mm
Orientation	Right Angle
Depth	9.2mm
Insulation Height	0.285 7.25mm
Current Rating	8A
Termination Style	Solder
Approval Agency	CSA, UL
Voltage	300V
Contact Tail Length	0.134 3.40mm
Max Current Rating	8A
Number of Levels	1
Current	8A
Number of Poles	5
Number of Decks	1
Voltage - IEC	250V
Number of Ways	5
Safety Approval	UL
Header Orientation	90°, Right Angle
Current - IEC	12A
Height	10.65mm
Length	18.9mm
Width	9.2mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1844249 Product Details

1844249 Overview

A Plug package is included with it.Mounting type Through Hole is selected for the device.The product is packaged in a Bulk case.This product is part of the COMBICON MC Series.Part Through Hole is mounted to the part.There are a number of benefits that this part has in common with other Header, Male Pins, Shrouded (4 Side) products.
