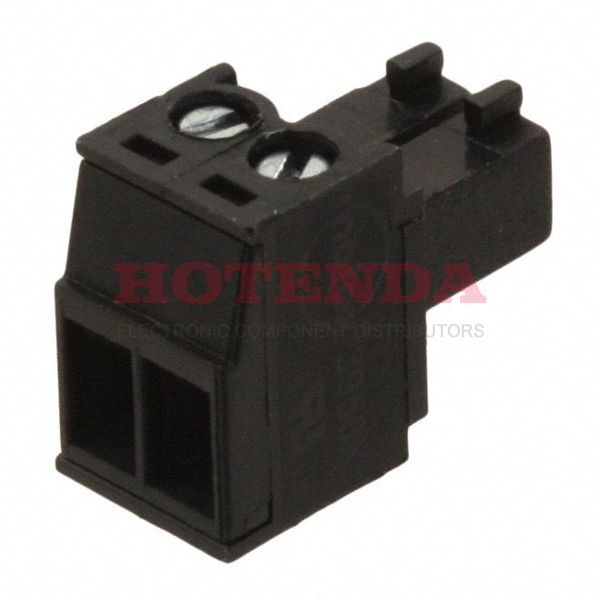

0395000002

0395000002

0395000002

Molex

0395000002 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Molex stock available on our website

SOT-23

0395000002 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 12 Weeks
Contact MaterialPhosphor Bronze
Mount Cable
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA66), Nylon 6/6
Operating Temperature-40°C~115°C
PackagingBulk
Series Eurostyle ESE 39500
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Type Plug, Female Sockets
Color Black
Number of Rows 1
Voltage - Rated 300V
Additional FeaturePOLARIZED
HTS Code8536.69.40.40
Pitch 0.138 3.50mm
Orientation Horizontal, Right Angle, Vertical
Insulation Height 0.440 11.18mm
Current Rating85A
Termination Style Screw - Rising Cage Clamp
Number of Contacts 2
Number of Levels 1
Wire Gauge (Max) 16 AWG
Wire Gauge (Min) 24 AWG
Wire/Cable Gauge 30 AWG
Contact Mating Finish Tin
Number of Decks 1
Wire Gauge or Range - AWG 16-30 AWG
Current - UL 8A
Torque - Screw 0.23 Nm (2.0 Lb-In)
Halogen Free Low Halogen
Number of Ways 2
Plug Wire Entry 180°
Wire Strip Length 6.5mm
Material Flammability Rating UL94 V-0
REACH SVHC Unknown
RoHS StatusROHS3 Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
In-Stock:6152 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$1.172797$1.172797
10$1.106413$11.06413
100$1.043785$104.3785
500$0.984703$492.3515
1000$0.928965$928.965

0395000002 Product Details

0395000002 Overview


Free Hanging (In-Line) is the type of mounting for the device.We use a Bulk case to package the product.This product is part of the Eurostyle ESE 39500 Series.Furthermore, there are other features such as POLARIZED, to name a few.It's mounted by Cable.In this case, the device operates at -40°C~115°C Operating Temperature.With this part, you get a lot of benefits that you won't find in other Plug, Female Sockets products.

0395000002 Features


Eurostyle ESE 39500 series

0395000002 Applications


There are a lot of Molex 0395000002 Terminal Blocks applications.

  • Military Technology
  • Industrial Automation
  • Energy efficient lighting (LED)
  • Telecommunications
  • Automotive Electronics
  • Medical technology
  • Data Technology
  • Communication
  • Blowers
  • Transportation
