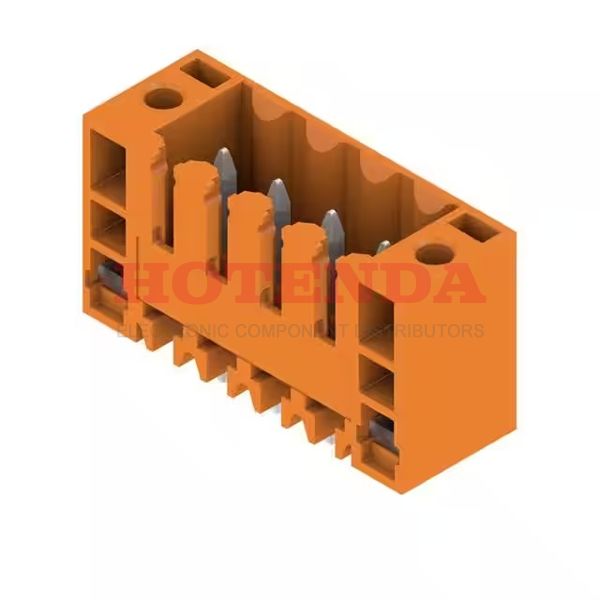

Name: 1607520000
Brand: Weidmüller
SKU: 1607520000
Price: 3.16000 USD
Availability: InStock

new-10%

1607520000

Manufacturer part number:1607520000

Manufacturer:Weidmüller

Description:1607520000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1607520000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Copper Alloy
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polybutylene Terephthalate (PBT)
Operating Temperature	-50°C~100°C
Packaging	Bulk
Published	2008
Series	Omnimate SL
JESD-609 Code	e3
Feature	Mating and Mounting Flange
Pbfree Code	yes
Part Status	Active
Connector Type	PCB, Terminal Block
Type	Header, Male Pins, Shrouded (4 Side)
Color	Orange
Number of Rows	1
Gender	Male
Voltage - Rated	300V
Additional Feature	HIGH DENSITY
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.138 3.50mm
Total Number of Contacts	4
Orientation	Straight
Ingress Protection	IP10
Depth	7.5mm
Insulation Height	0.437 11.10mm
Current Rating	14.5A
Termination Style	Solder
Approval Agency	CSA, UR
Insulation Resistance	1MOhm
Voltage	300V
Contact Tail Length	0.126 3.20mm
Max Current Rating	10A
Number of Levels	1
Current	10A
Number of Poles	4
Contact Mating Finish	Tin
Voltage - IEC	320V
Header Orientation	Vertical
Current - IEC	17A
Hole Diameter	1.3 mm
Length	21mm
Width	7.5mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1607520000 Product Details

1607520000 Overview

A PCB, Terminal Block packaging is included.Its mounting type is Through Hole.In order to package the product, a Bulk case is used.Among the products in the Omnimate SL Series, it is one of the most popular.Additionally, there are other features, such as HIGH DENSITY.This feature renders it more powerful in a number of ways because of its Mating and Mounting Flange feature.Through Hole represents the mounting point for the part.-50°C~100°C Operating Temperature is the default.As with other Header, Male Pins, Shrouded (4 Side) products, this part has a lot of benefits.
