Name: 0393570019
Brand: Molex
SKU: 0393570019
Price: 4.15000 USD
Availability: InStock

new-10%

0393570019

Manufacturer part number:0393570019

Manufacturer:Molex

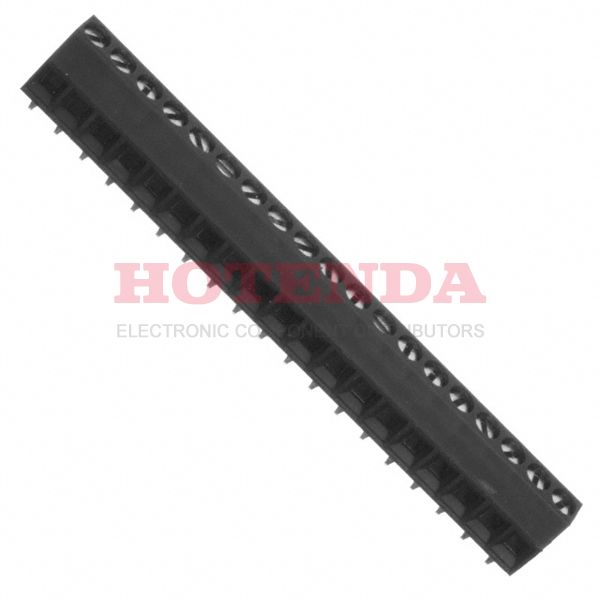

Description:0.138 3.50mm Black Bulk Polyamide (PA), Nylon Through Hole Horizontal with Board Screw - Rising Cage Clamp 1 Levels 16-28 AWG Eurostyle 39357

Case Package:SOT-23

Datasheet:0393570019 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Copper
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Contact Material - Plating	Copper Alloy - Tin Plated
Clamp Material - Plating	Copper Alloy - Nickel Plated
Screw Material - Plating	Copper Alloy - Nickel Plated
Operating Temperature	-40°C~105°C
Packaging	Bulk
Series	Eurostyle 39357
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Color	Black
Number of Rows	1
Voltage - Rated	300V
Additional Feature	UL 94V-0, SHROUDED
HTS Code	8536.69.40.40
Pitch	0.138 3.50mm
Orientation	Vertical
Current Rating	17.5A
Wire Gauge	16-28 AWG
Max Voltage Rating (AC)	300V
Number of Levels	1
Current	12A
Wire Gauge (Max)	28 AWG
Wire Gauge (Min)	28 AWG
Number of Decks	1
Terminal and Terminal Block Type	STRIP TERMINAL BLOCK
Torque - Screw	0.31 Nm (2.7 Lb-In)
Halogen Free	Low Halogen
Number of Ways	19
Safety Approval	UL
Mating Orientation	Horizontal with Board
Wire Termination	Screw - Rising Cage Clamp
Screw Thread	M3
Number of Positions Per Level	19
RoHS Status	ROHS3 Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

0393570019 Product Details

0393570019 Overview

Its mounting type is Through Hole.Packaging is performed using a Bulk case.It is part of the Eurostyle 39357 Series of products.Additionally, there are other features, such as UL 94V-0, SHROUDED.Through Hole mounts the part.There is no operating temperature for the device.
