Name: 0022288120
Brand: Molex
SKU: 0022288120
Price: 0.74000 USD
Availability: InStock

new-10%

0022288120

Manufacturer part number:0022288120

Manufacturer:Molex

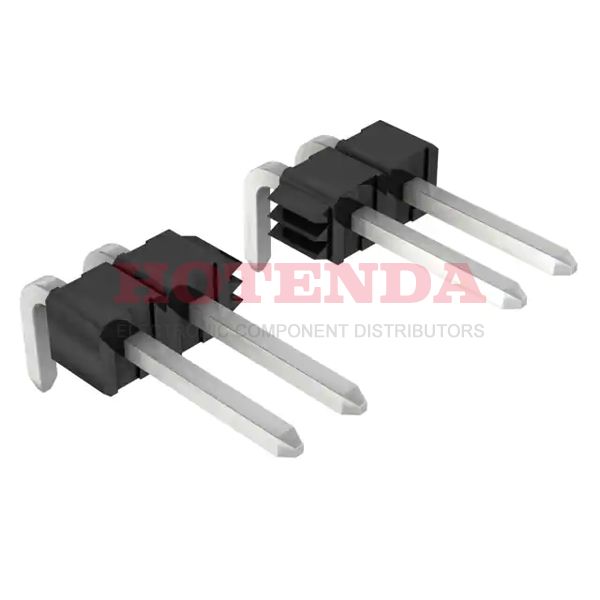

Description:0022288120 datasheet pdf and Rectangular Connectors - Headers, Male Pins product details from Molex stock available on our website

Case Package:SOT-23

Datasheet:0022288120 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	NOT SPECIFIED
Mounting Type	Through Hole, Right Angle
Contact Shape	Square
Insulation Material	Polyamide (PA), Nylon, Glass Filled
Packaging	Bulk
Series	KK 42377
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Header, Breakaway
Number of Positions	12
Applications	Automotive, General Purpose, Medical, Telecommunications
Number of Rows	1
Fastening Type	Push-Pull
Contact Finish - Mating	Tin
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Male Pin
Mixed Contacts	NO
Terminal Pitch	2.54mm
Insulation Height	0.098 2.50mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Contact Length - Post	0.120 3.05mm
Shrouding	Unshrouded
Contact Length - Mating	0.244 6.20mm
UL Flammability Code	94V-0
Contact Finish Thickness - Mating	100.0μin 2.54μm
Contact Finish Thickness - Post	100.0μin 2.54μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

0022288120 Product Details

0022288120 Overview

Packaging for this item is Header, Breakaway.This device is mounted in the Through Hole, Right Angle position.We use a Bulk case to package the product.It belongs to the KK 42377 Series of products.A possible application for the device is Automotive, General Purpose, Medical, Telecommunications.
