Name: 0022287035
Brand: Molex
SKU: 0022287035
Price: 0.18000 USD
Availability: InStock

new-10%

0022287035

Manufacturer part number:0022287035

Manufacturer:Molex

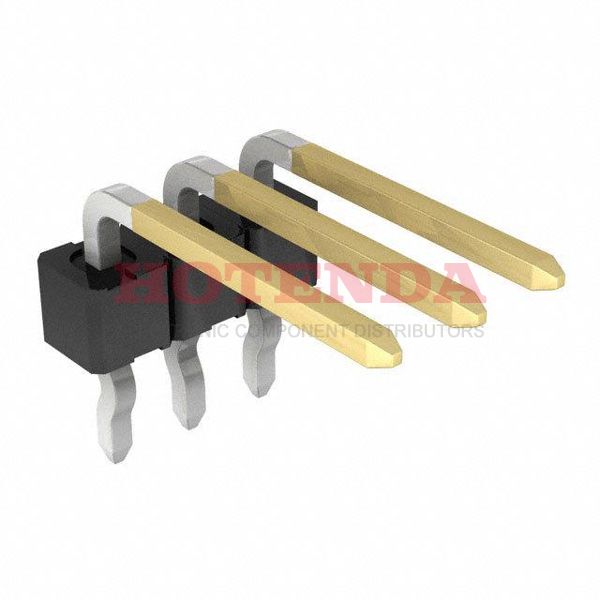

Description:KK 42376 Series 1-Row Header, Breakaway Kinked Pin, Solder Bulk Through Hole, Right Angle Gold Polyamide (PA), Nylon, Glass Filled 3-Position Board to Board or Cable 0.090 2.29mm Height

Case Package:SOT-23

Datasheet:0022287035 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	11 Weeks
Contact Plating	Gold
Mount	Through Hole
Mounting Type	Through Hole, Right Angle
Contact Shape	Square
Insulation Material	Polyamide (PA), Nylon, Glass Filled
Packaging	Bulk
Series	KK 42376
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Kinked Pin, Solder
Connector Type	Header, Breakaway
Number of Positions	3
Color	Black
Applications	Automotive, General Purpose, Medical, Telecommunications
Number of Rows	1
Gender	Male
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Type	Male Pin
Pitch	2.54mm
Insulation Height	0.090 2.29mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Contact Length - Post	0.135 3.43mm
Shrouding	Unshrouded
Number of Contacts	3
Contact Finish - Post	Tin
Contact Length - Mating	0.405 10.29mm
Contact Finish Thickness - Mating	30.0μin 0.76μm
Contact Finish Thickness - Post	100.0μin 2.54μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

0022287035 Product Details

0022287035 Overview

Packaging is in the form of Header, Breakaway.This device has a Through Hole, Right Angle mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the KK 42376 Series.There are a variety of possible applications for this device, including Automotive, General Purpose, Medical, Telecommunications.There is a mounting hole at Through Hole.
