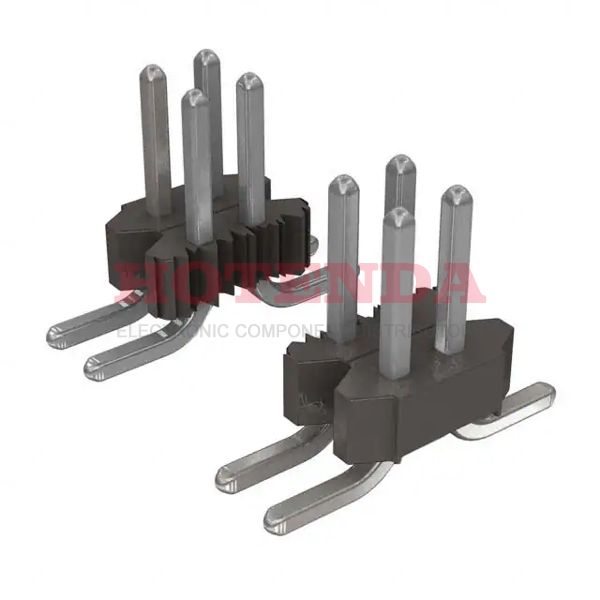

Name: 0015911684
Brand: Molex
SKU: 0015911684
Price: 4.90000 USD
Availability: InStock

new-10%

0015911684

Manufacturer part number:0015911684

Manufacturer:Molex

Description:0015911684 datasheet pdf and Rectangular Connectors - Headers, Male Pins product details from Molex stock available on our website

Case Package:SOT-23

Datasheet:0015911684 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	11 Weeks
Contact Material	Copper Alloy
Mount	Surface Mount
Mounting Type	Surface Mount
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP), Glass Filled
Housing Material	Polymer
Packaging	Tube
Series	C-Grid 71308
Feature	Board Guide
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Header, Breakaway
Number of Positions	68
Max Operating Temperature	105°C
Min Operating Temperature	-40°C
Applications	Automotive, General Purpose, Lighting, Medical, Telecommunications
Number of Rows	2
Gender	Male
Fastening Type	Push-Pull
Contact Finish - Mating	Tin
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Male Pin
Mixed Contacts	NO
Total Number of Contacts	68
Orientation	Straight
Depth	5.08mm
Insulation Height	0.090 2.29mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Reach Compliance Code	unknown
Pitch - Mating	0.100 2.54mm
Row Spacing - Mating	0.100 (2.54mm)
Shrouding	Unshrouded
Contact Length - Mating	0.320 8.13mm
UL Flammability Code	94V-0
Housing Color	Black
Max Voltage Rating (AC)	250V
Length	86.36mm
Contact Finish Thickness - Mating	150.0μin 3.81μm
Contact Finish Thickness - Post	150.0μin 3.81μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

0015911684 Product Details

0015911684 Overview

A Header, Breakaway packaging is included.There is a mounting type of Surface Mount for this device.Packaged in a Tube case.It belongs to the C-Grid 71308 Series of products.If it is to be used, it should be kept at a temperature below 105°C.Minimum temperature is -40°C.A possible application of the device would be Automotive, General Purpose, Lighting, Medical, Telecommunications.In many ways, Board Guide makes it more powerful.There is a Surface Mount mount on the part.
