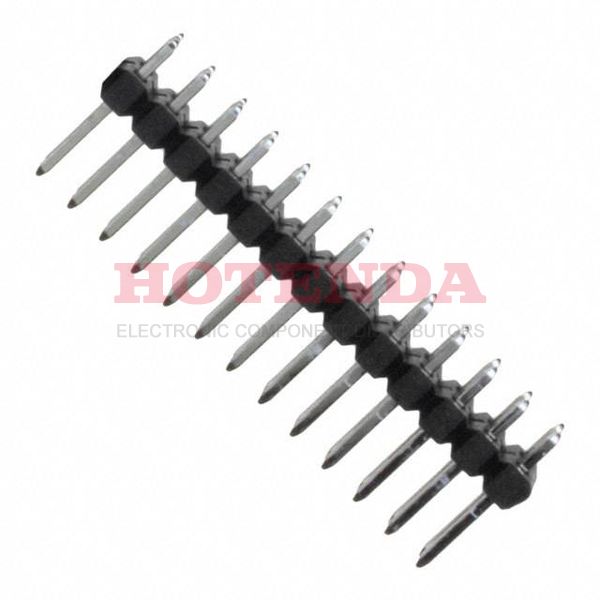

Name: 0010897261
Brand: Molex
SKU: 0010897261
Price: 2.52000 USD
Availability: InStock

new-10%

0010897261

Manufacturer part number:0010897261

Manufacturer:Molex

Description:0010897261 datasheet pdf and Rectangular Connectors - Headers, Male Pins product details from Molex stock available on our website

Case Package:SOT-23

Datasheet:0010897261 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	Copper Alloy
Mounting Type	Through Hole
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP), Glass Filled
Packaging	Bulk
Series	C-Grid 70280
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Header, Breakaway
Number of Positions	26
Applications	Automotive, General Purpose, Lighting, Medical, Telecommunications
Number of Rows	2
Fastening Type	Push-Pull
Contact Finish - Mating	Tin
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Male Pin
Mixed Contacts	NO
Insulation Height	0.090 2.29mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Row Spacing - Mating	0.100 (2.54mm)
Contact Length - Post	0.107 2.71mm
Shrouding	Unshrouded
Contact Length - Mating	0.240 6.10mm
UL Flammability Code	94V-0
Overall Contact Length	0.437 11.10mm
Contact Finish Thickness - Mating	150.0μin 3.81μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

0010897261 Product Details

0010897261 Overview

You get it in Header, Breakaway packaging.The device's mounting type is Through Hole.We package the product with a Bulk case.A member of the C-Grid 70280 Series.The device may be used for the following applications: Automotive, General Purpose, Lighting, Medical, Telecommunications.
