Name: CZDM1003N TR
Brand: Central Semiconductor Corp
SKU: CZDM1003N TR
Availability: InStock

new-10%

CZDM1003N TR

Manufacturer part number:CZDM1003N TR

Manufacturer:Central Semiconductor Corp

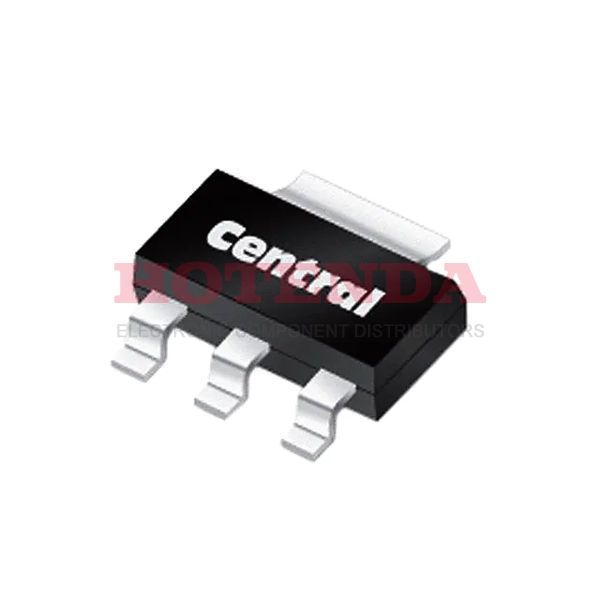

Description:MOSFET N-CH 100V 3A SOT-223

Case Package:SOT-23

Datasheet:CZDM1003N TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Mounting Type	Surface Mount
Package / Case	TO-261-4, TO-261AA
Surface Mount	YES
Operating Temperature	-55°C~150°C TJ
Packaging	Cut Tape (CT)
Published	2016
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Subcategory	FET General Purpose Power
Technology	MOSFET (Metal Oxide)
Reach Compliance Code	compliant
Configuration	Single
Power Dissipation-Max	2W Ta
Operating Mode	ENHANCEMENT MODE
FET Type	N-Channel
Rds On (Max) @ Id, Vgs	150m Ω @ 2A, 10V
Vgs(th) (Max) @ Id	4V @ 250μA
Input Capacitance (Ciss) (Max) @ Vds	975pF @ 25V
Current - Continuous Drain (Id) @ 25°C	3A Ta
Gate Charge (Qg) (Max) @ Vgs	15nC @ 10V
Drain to Source Voltage (Vdss)	100V
Drive Voltage (Max Rds On,Min Rds On)	10V
Vgs (Max)	20V
Drain Current-Max (Abs) (ID)	3A
RoHS Status	RoHS Compliant

About CZDM1003N TR

The CZDM1003N TR from Central Semiconductor Corp is a high-performance microcontroller designed for a wide range of embedded applications. This component features MOSFET N-CH 100V 3A SOT-223.

Key Features

Advanced AVR architecture for efficient processing
Wide operating temperature range: -40°C to 85°C
Low power consumption for energy-efficient applications
Comprehensive peripheral set including SPI, UART, and USART interfaces

Applications

This microcontroller is ideal for various applications including:

Industrial control systems
Consumer electronics
Automotive systems
IoT devices
Medical equipment

Technical Support

Hotenda provides comprehensive technical support for the CZDM1003N TR, including datasheets, application notes, and design resources. Our team of engineers is available to assist with your design challenges.
