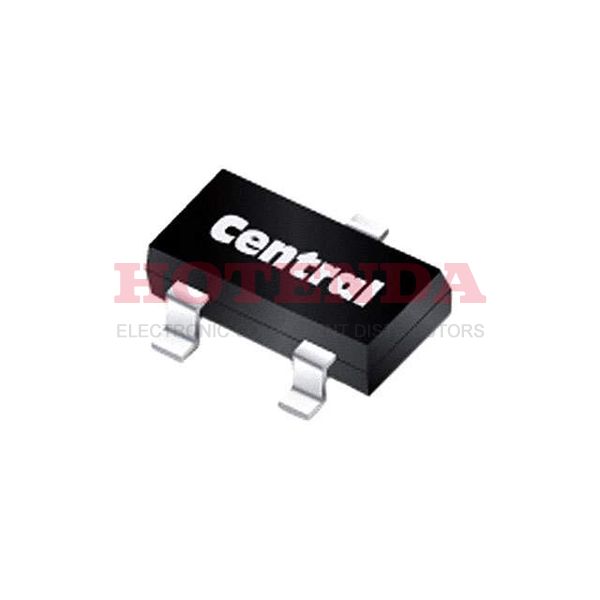

CMPSH-3C TR

Manufacturer part number:CMPSH-3C TR

Manufacturer:Central Semiconductor Corp

Description:CMPSH-3C TR datasheet pdf and Diodes - Rectifiers - Arrays product details from Central Semiconductor Corp stock available on our website

Case Package:SOT-23

Datasheet:CMPSH-3C TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	8 Weeks
Mounting Type	Surface Mount
Package / Case	TO-236-3, SC-59, SOT-23-3
Surface Mount	YES
Diode Element Material	SILICON
Packaging	Cut Tape (CT)
Published	2017
JESD-609 Code	e3
Part Status	Discontinued
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	3
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
HTS Code	8541.10.00.70
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
[email protected] Reflow Temperature-Max (s)	10
JESD-30 Code	R-PDSO-G3
Qualification Status	Not Qualified
Operating Temperature (Max)	150°C
Number of Elements	2
Power Dissipation-Max	0.35W
Speed	Small Signal =< 200mA (Io), Any Speed
Diode Type	Schottky
Current - Reverse Leakage @ Vr	500nA @ 25V
Voltage - Forward (Vf) (Max) @ If	1V @ 100mA
Operating Temperature - Junction	-65°C~150°C
Output Current-Max	0.1A
Voltage - DC Reverse (Vr) (Max)	30V
Current - Average Rectified (Io)	100mA
Rep Pk Reverse Voltage-Max	30V
Non-rep Pk Forward Current-Max	0.75A
Diode Configuration	1 Pair Common Cathode
Reverse Current-Max	0.5μA
Reverse Recovery Time-Max	0.005μs
RoHS Status	ROHS3 Compliant

CMPSH-3C TR Product Details

CMPSH-3C TR Overview

A forward voltage monitoring system should be used and the forward voltage should never exceed 0.5μA.This device can support a maximum output voltage of 0.1A.A forward current 0.005μs instantaneously switches directions due to residual stored charge.
