CB027C0104JBA

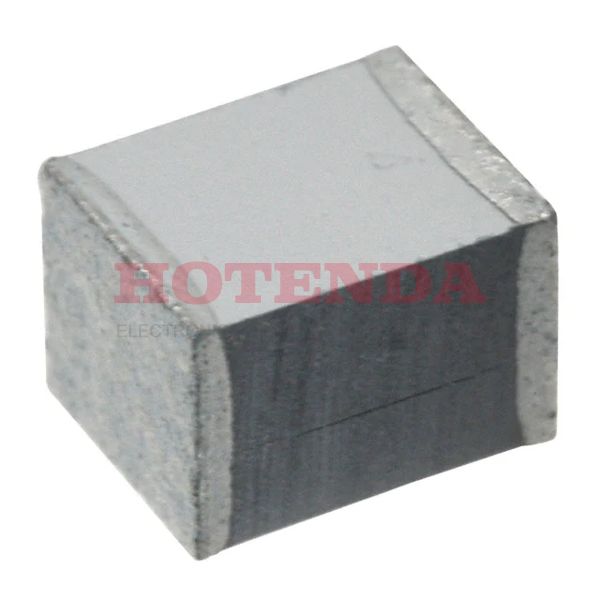

  • CB027C0104JBA - CB 0.1μF Film Capacitor ±5% 1210 (3225 Metric) Solder Pads 25V-DC 16V-AC Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked Surface Mount
  • CB027C0104JBA - CB 0.1μF Film Capacitor ±5% 1210 (3225 Metric) Solder Pads 25V-DC 16V-AC Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked Surface Mount

CB027C0104JBA

CB027C0104JBA

AVX Corporation

CB 0.1μF Film Capacitor ±5% 1210 (3225 Metric) Solder Pads 25V-DC 16V-AC Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked Surface Mount

SOT-23

CB027C0104JBA Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 14 Weeks
Contact PlatingTin
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 1210 (3225 Metric)
Terminal Shape WRAPAROUND
Number of Pins 2
Dielectric MaterialPolyester, Polyethylene Naphthalate (PEN), Metallized - Stacked
Operating Temperature-55°C~125°C
PackagingCut Tape (CT)
Published 2006
Series CB
Size / Dimension 0.130Lx0.098W 3.30mmx2.50mm
Tolerance ±5%
JESD-609 Code e3
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 2
Termination Solder Pads
ECCN Code EAR99
Applications General Purpose
Additional FeatureRATED AC VOLTAGE (V): 16
Capacitance 0.1μF
Voltage - Rated DC 25V
Packing Method TR, 7 INCH
Depth 2.5mm
Voltage - Rated AC 16V
Case Code (Metric) 3225
Case Code (Imperial) 1210
Capacitor Type FILM CAPACITOR
Dissipation Factor0.8 %
Height 2.3114mm
Height Seated (Max) 0.071 1.80mm
Length 3.3mm
Radiation HardeningNo
REACH SVHC No SVHC
RoHS StatusROHS3 Compliant
In-Stock:7275 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$2.658357$2.658357
10$2.507884$25.07884
100$2.365928$236.5928
500$2.232008$1116.004
1000$2.105668$2105.668

CB027C0104JBA Product Details

CB027C0104JBA Overview


It is capable of operating at -55°C~125°C degrees Celsius.

CB027C0104JBA Features



CB027C0104JBA Applications


There are a lot of AVX Corporation CB027C0104JBA applications of film capacitors.

  • RFI for automotive
  • Electronic ballasts
  • Global positioning systems
  • Mobile communications
  • TV and monitor sets
  • VCO's
  • Switch mode power supplies
  • Bypassing
  • Blocking
  • IGBT
