QXP2J684KRPT

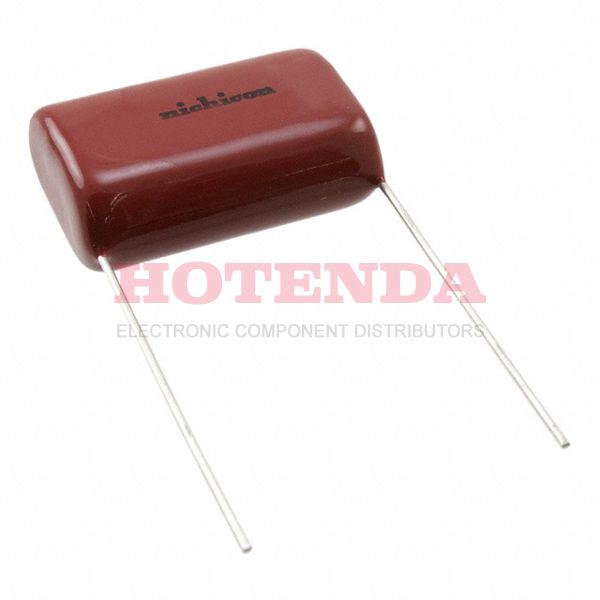

  • QXP2J684KRPT - QXP 0.68μF Film Capacitor ±10% Radial PC Pins 630V-DC 200V-AC Polypropylene (PP), Metallized Through Hole
  • QXP2J684KRPT - QXP 0.68μF Film Capacitor ±10% Radial PC Pins 630V-DC 200V-AC Polypropylene (PP), Metallized Through Hole

QXP2J684KRPT

QXP2J684KRPT

Nichicon

QXP 0.68μF Film Capacitor ±10% Radial PC Pins 630V-DC 200V-AC Polypropylene (PP), Metallized Through Hole

SOT-23

QXP2J684KRPT Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 18 Weeks
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Terminal Shape WIRE
Number of Pins 2
Dielectric MaterialPolypropylene (PP), Metallized
Operating Temperature-40°C~105°C
PackagingBulk
Published 2009
Series QXP
Size / Dimension 1.240Lx0.520W 31.50mmx13.20mm
Tolerance ±10%
JESD-609 Code e3
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination PC Pins
ECCN Code EAR99
Terminal Finish Matte Tin (Sn)
Applications High Frequency, Switching
Capacitance 0.68μF
Voltage - Rated DC 630V
Depth 13.2mm
Voltage - Rated AC 200V
Lead Pitch 27.5mm
Capacitor Type FILM CAPACITOR
Dielectric PP
Lead Spacing1.083 27.50mm
Lead Diameter 800 μm
Dissipation Factor0.1 %
Lead/Base Style Straight
Height 21.5mm
Height Seated (Max) 0.906 23.00mm
Length 31.5mm
RoHS StatusROHS3 Compliant
In-Stock:3556 items

Pricing & Ordering

QuantityUnit PriceExt. Price
200$1.63105$326.21

QXP2J684KRPT Product Details

QXP2J684KRPT Overview


Lead spacing is 1.083 27.50mm for this electrical device.The device is capable of operating at the temperature of -40°C~105°C.

QXP2J684KRPT Features



QXP2J684KRPT Applications


There are a lot of Nichicon QXP2J684KRPT applications of film capacitors.

  • Test and measuring equipment
  • Filters
  • Snubbering
  • VCO's
  • Lighting
  • Switch mode power supplies
  • Switch-mode power supplies
  • Mobile communications
  • Electronic ballasts
  • Compact fluorescent lamps (CFL)
