06035D103KAT2A

  • 06035D103KAT2A
  • 06035D103KAT2A

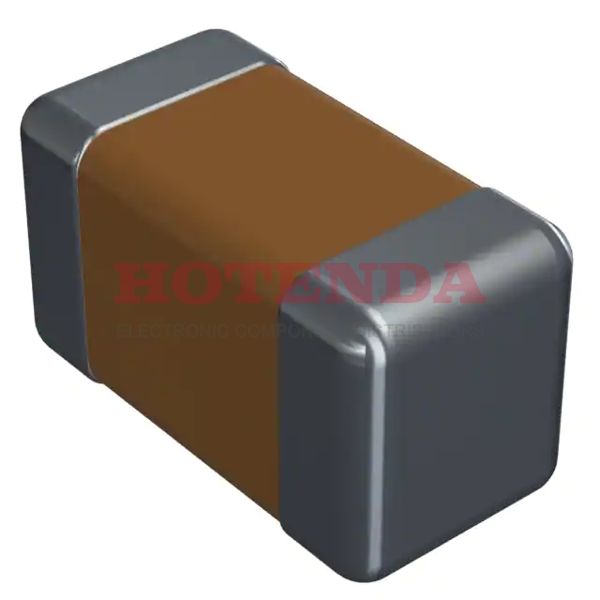

06035D103KAT2A

06035D103KAT2A

AVX Corporation

06035D103KAT2A datasheet pdf and Ceramic Capacitors product details from AVX Corporation stock available on our website

SOT-23

06035D103KAT2A Datasheet

non-compliant

In-Stock: 0 items
Specifications
Name Value
Type Parameter
Factory Lead Time 12 Weeks
Mount Surface Mount
Mounting Type Surface Mount, MLCC
Package / Case 0603 (1608 Metric)
Terminal Shape WRAPAROUND
Number of Pins 2
Dielectric Material CERAMIC
Operating Temperature -55°C~85°C
Packaging Tape & Reel (TR)
Published 2012
Size / Dimension 0.063Lx0.032W 1.60mmx0.81mm
Tolerance ±10%
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Temperature Coefficient X5R
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Applications General Purpose
Capacitance 10000pF
Voltage - Rated DC 50V
Packing Method TR, Paper, 7 Inch
Depth 810μm
Case Code (Metric) 1608
Case Code (Imperial) 0603
Capacitor Type CERAMIC CAPACITOR
Temperature Characteristics Code X5R
Multilayer Yes
Height 0.9mm
Length 1.6mm
Width 0.81mm
Thickness (Max) 0.035 0.90mm
Thickness 889μm
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Pricing & Ordering
Quantity Unit Price Ext. Price
1 $0.110860 $0.11086
10 $0.104585 $1.04585
100 $0.098665 $9.8665
500 $0.093080 $46.54
1000 $0.087812 $87.812
06035D103KAT2A Product Details

06035D103KAT2A Overview


In the case of this device, the size/dimension of the program is 0.063Lx0.032W 1.60mmx0.81mm.This coefficient equals X5R indicates that a substance's electrical resistance changes with temperature per degree change.Ceramic capacitor runs on voltage of 50V - Rated DC.

06035D103KAT2A Features


a size/dimension of 0.063Lx0.032W 1.60mmx0.81mm
with X5R being the highest temperature coefficient
with the voltage - Rated DC of 50V

06035D103KAT2A Applications


There are a lot of AVX Corporation 06035D103KAT2A applications of ceramic capacitors.

  • Power supply circuit
  • Mobile devices
  • General electronic equipment
  • Servers, PCs, tablets
