CGA5H2C0G2A153J115AA

  • CGA5H2C0G2A153J115AA
  • CGA5H2C0G2A153J115AA

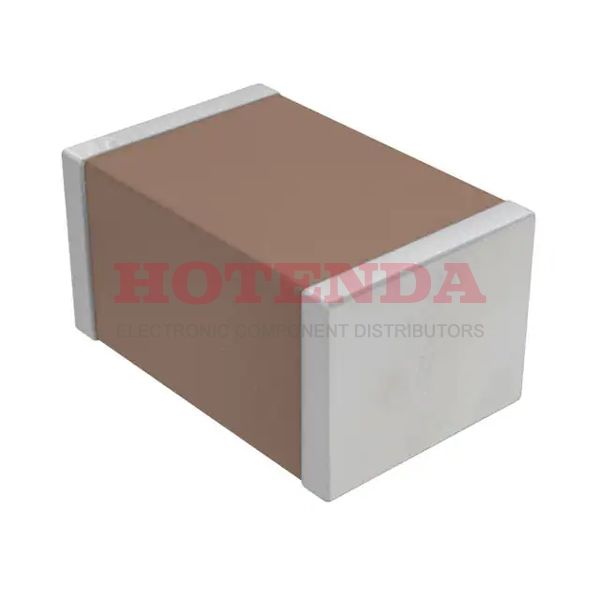

CGA5H2C0G2A153J115AA

CGA5H2C0G2A153J115AA

TDK Corporation

CGA5H2C0G2A153J115AA datasheet pdf and Ceramic Capacitors product details from TDK Corporation stock available on our website

SOT-23

CGA5H2C0G2A153J115AA Datasheet

non-compliant

In-Stock: 0 items
Specifications
Name Value
Type Parameter
Factory Lead Time 20 Weeks
Lifecycle Status PRODUCTION (Last Updated: 1 month ago)
Mount Surface Mount
Mounting Type Surface Mount, MLCC
Package / Case 1206 (3216 Metric)
Operating Temperature -55°C~125°C
Packaging Tape & Reel (TR)
Published 2012
Series CGA
Size / Dimension 0.126Lx0.063W 3.20mmx1.60mm
Tolerance ±5%
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Temperature Coefficient C0G NP0
Terminal Finish Tin (Sn) - with Nickel (Ni) barrier
Composition Ceramic
Applications Automotive
Capacitance 0.015μF
Voltage - Rated DC 100V
Packing Method TR, 7 Inch
Case Code (Metric) 3216
Case Code (Imperial) 1206
Dielectric C0G
Temperature Characteristics Code C0G
Multilayer Yes
Height 1.15mm
Length 3.2mm
Width 1.6mm
Thickness (Max) 0.051 1.30mm
Thickness 1.2954mm
RoHS Status ROHS3 Compliant
Ratings AEC-Q200
Pricing & Ordering
Quantity Unit Price Ext. Price
CGA5H2C0G2A153J115AA Product Details

CGA5H2C0G2A153J115AA Overview


A 0.126Lx0.063W 3.20mmx1.60mm size/dimension program is available for this device.The temperature coefficient of resistance is generally defined as?the change in electrical resistance of a substance with respect to per degree change in temperature, and its coefficient is C0G NP0.A voltage of 100V is required to operate this capacitor.

CGA5H2C0G2A153J115AA Features


a size/dimension of 0.126Lx0.063W 3.20mmx1.60mm
with C0G NP0 being the highest temperature coefficient
with the voltage - Rated DC of 100V

CGA5H2C0G2A153J115AA Applications


There are a lot of TDK Corporation CGA5H2C0G2A153J115AA applications of ceramic capacitors.

  • Servers, PCs, tablets
  • Power supply circuit
  • General electronic equipment
  • Mobile devices
