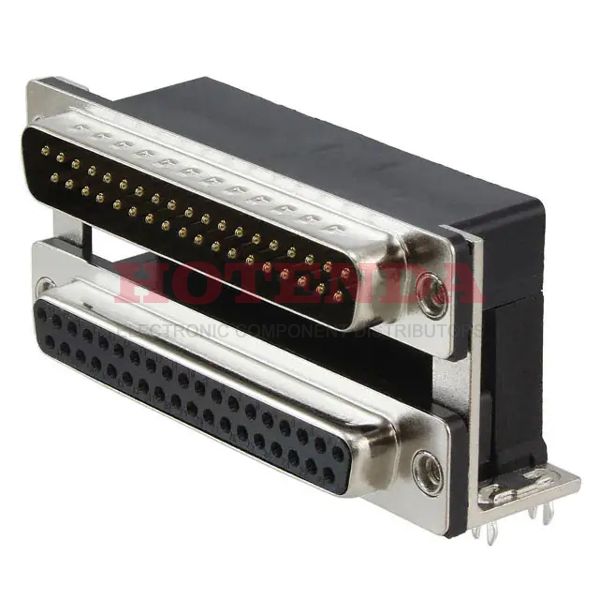

Name: ASUB-277-37TP24
Brand: Assmann WSW Components
SKU: ASUB-277-37TP24
Price: 9.12000 USD
Availability: InStock

new

ASUB-277-37TP24

Manufacturer part number:ASUB-277-37TP24

Manufacturer:Assmann WSW Components

Description:D-Sub - Stacked Plug, Male Pins; Receptacle, Female Sockets 37, 37-Position Signal Solder 4 DC C ; 4 DC C Through Hole, Right Angle Copper Alloy Gold Steel, Tin Plated

Case Package:SOT-23

Datasheet:ASUB-277-37TP24 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	23 Weeks
Contact Material	Copper Alloy
Mount	Through Hole
Mounting Type	Through Hole, Right Angle
Number of Pins	37
Dielectric Material	Polybutylene Terephthalate (PBT)
Housing Material	PBT
Shell Material, Finish	Steel, Tin Plated
Operating Temperature	-55°C~105°C
Packaging	Tray
Published	2014
Feature	Board Lock, Grounding Indents
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Plug, Male Pins; Receptacle, Female Sockets
Number of Positions	37, 37
Color	Black
Number of Rows	2, 2
Voltage - Rated	250V
Contact Type	Signal
Current Rating	3A
Contact Finish	Gold
Flange Feature	Housing/Shell (4-40)
Connector Style	D-Sub - Stacked
Shell Size, Connector Layout	4 DC C ; 4 DC C
Contact Finish Thickness	Flash
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

ASUB-277-37TP24 Product Details

ASUB-277-37TP24 Overview

The product comes in a package of Plug, Male Pins; Receptacle, Female Sockets.Through Hole, Right Angle indicates that the device is mounted.To package the product, a Tray case is used.A device with a 37 pin configuration is equipped with the device.As a result of its Board Lock, Grounding Indents feature, it possesses a great deal of power.It is mounted by Through Hole.The device is operating at -55°C~105°C Operating Temperature.
