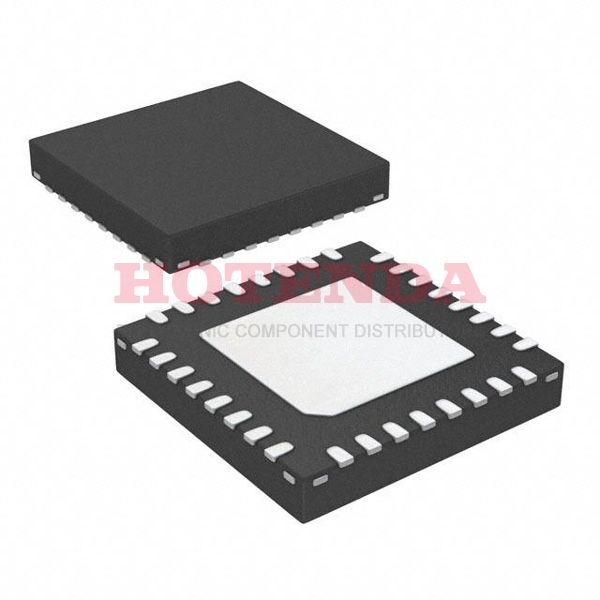

HMC698LP5 Overview
A clock integrated circuit is packaged in a Bulk-shaped package because it is for use as a clock. There is a clock generator embedded in the 32-VFQFN Exposed Pad package. This clock generator will sustain a maximum temperature of 235 when reflown. There are 32 terminations found in the file. The clock generator ic should be grounded with a voltage of 5V. This clock generator receives its inputs from Clock, which is designed to be the clock source. An implementation of 1 circuits is required in order to fully utili1e the capabilities of the electrical part. An upper frequency limit of 1.3GHz Max can be achieved with this clock-based frequency synthesizer. Due to the Surface Mount-shape, this electronic component can be conveniently installed on the panel. As long as there are 4.75V~5.25V supply voltages provided, clock generator ic should work. Statistics suggest that the ambient temperature be set at -40°C~85°C, which is what is estimated by the test. There is a 32-bit clock-generating IC built specifically for microprocessors in this frequency generator. These related electrical parts are available for the base part number HMC698. PLL is designed with 32 pins. The supply voltage should be maintained at 5V for high efficiency. A supply current of 310mA is required to fully operate clock PLL. The electronic frequency generator is composed of a hitless switching, hold-over, and jittering function.
HMC698LP5 Features
Available in the 32-VFQFN Exposed Pad
Supply voltage of 5V
Operating supply voltage of 5V
HMC698LP5 Applications
There are a lot of Analog Devices Inc.
HMC698LP5 Clock Generators applications.
- Wireless infrastructure
- Instrument
- Automatic test equipment
- Wide area power system
- Digital circuits
- Wireless base station for LTE, LTE-advanced
- Picocells, femtocells and small cells
- Sampling clocks for ADC and DAC
- 1 Gigabit Ethernet
- 10 Gigabit Ethernet
