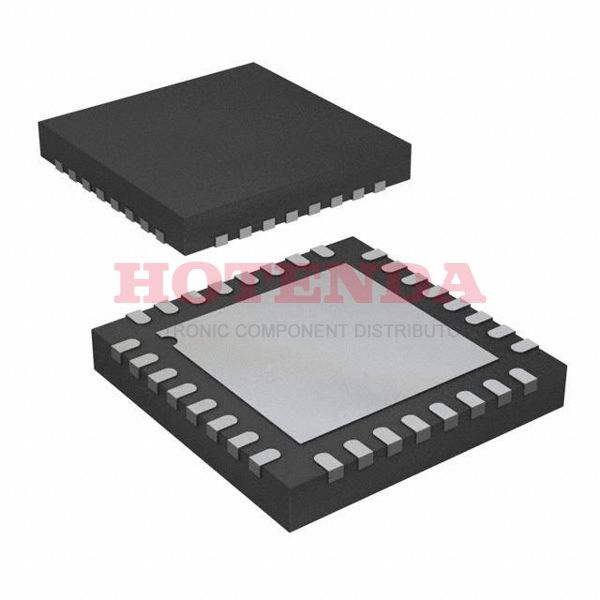

ADF5356BCPZ Overview
As a clock IC, PLLs is packaged using the Tray method. Clock PLL is embedded in the 32-WFQFN Exposed Pad, CSP package. As a result of this, we can find 32 terminations. To operate this time clock generator, 3.3V voltage should be applied. It is designed that the Clock PLL's input should be Clock. For full access to the electronic component's capabilities, 1 circuits are implemented. It provides a maximum frequency of 13.6GHz. Surface Mount-slots make it easy to mount this electronic component on panels. It would take a maximum supply voltage of 3.45V to operate this time clock generator. Clock PLL works with 3.15V~3.45V supply voltage provided. Test statistics estimate a temperature of -40°C~85°C, which should be set as the ambient temperature. This clock-generating IC is a 32-bit device designed explicitly for microprocessors. A 32 pin is available on the clock PLL. It can be classified as a PLL FREQUENCY SYNTHESIZER-clock PLL because it is an analog IC.
ADF5356BCPZ Features
Available in the 32-WFQFN Exposed Pad, CSP
Supply voltage of 3.3V
ADF5356BCPZ Applications
There are a lot of Analog Devices Inc. ADF5356BCPZ Clock Generators applications.
- Bluetooth transmitters
- Multi-function printers
- Smartphones
- Test equipment
- Electronic equipment
- Tracking filters
- Peripheral devices
- PMR (Professional Mobile Radio)
- Line cards used in telephone exchange
- Simple clock clean-up circuits
