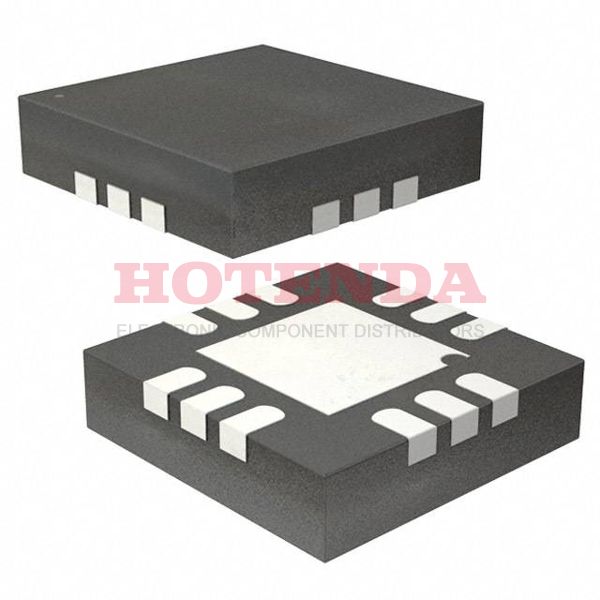

AD8465WBCPZ-WP Overview
A convenient packaging is provided in the form of 12-WFQFN Exposed Pad, CSP .There is a comparator of type Complementary, LVDS, Rail-to-Rail output on this device.The part will be shipped by Tray .The device is designed with 12 terminations.The electrical component in this case belongs to the Comparator family.Electronic comparator is capable of performing numerous tasks when powered by 2.5V voltage.In general, the chip type can be classified as with Latch .A total of 1 elements can be found in it.A total of 12 pins are included.A Surface Mount mounting type is recommended.The operating temperature should be set to -40°C~125°C to avoid mal-function.There are 12 pins on the comparator.Try search AD8465 to get more pin-to-pin solutions for your special needs.There is 3mA current flowing in this comparator.Normal operation of the device requires 3mA supply current.In order to operate the device, 3/5V power supplies are sufficient.From the voltage formula, the voltage gain of the part is 62dB .In this case, the part is from the Automotive comparator series.
AD8465WBCPZ-WP Features
Complementary, LVDS, Rail-to-Rail output capability
with Latch IC
Employing 1 elements
Operates under -40°C~125°C
Quiescent Current: 3mA
Voltage Gain: 62dB
AD8465WBCPZ-WP Applications
There are a lot of Analog Devices Inc. AD8465WBCPZ-WP linear comparators applications.
- Power Supervision
- Appliances
- High-Speed Differential Line Receiver
- Building automation
- Industrial
- Infotainment and Clusters
- Mobile Phones
- Consumer Medical Electronics
- Analog front end
- System control and monitoring
