Name: FXPT10200
Brand: Amphenol PCD
SKU: FXPT10200
Price: 7.75000 USD
Availability: InStock

new-10%

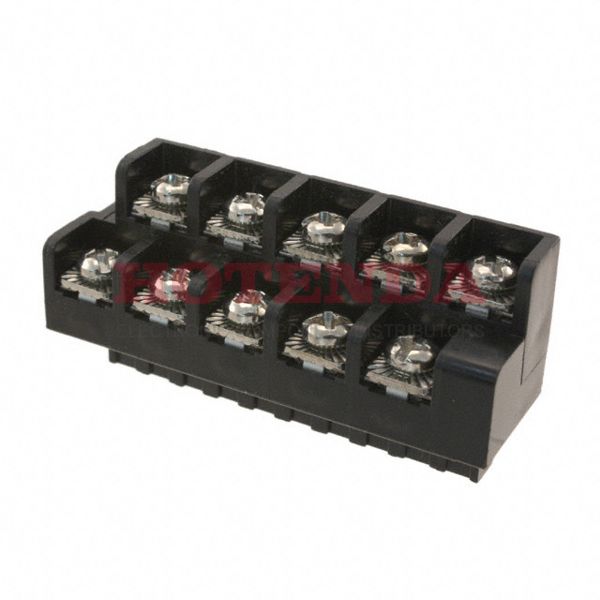

FXPT10200

Manufacturer part number:FXPT10200

Manufacturer:Amphenol PCD

Description:FXPT10200 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Amphenol PCD stock available on our website

Case Package:SOT-23

Datasheet:FXPT10200 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	8 Weeks
Contact Material	Copper Alloy
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Material	PPO
Housing Material	Polyphenylene Oxide (PPO)
Operating Temperature	105°C
Packaging	Bulk
Published	2008
Series	FXP FlexiPlug®
Feature	Retention Latches (Non-Wire Side)
Part Status	Active
Moisture Sensitivity Level (MSL)	Not Applicable
Termination	Screw
Type	Plug, Female Sockets
Number of Positions	10
Color	Black
Number of Rows	1
Gender	Female
Voltage - Rated	300V
Pitch	0.200 5.08mm
Orientation	Straight
Depth	29.05mm
Insulation Height	0.690 17.53mm
Current Rating	15A
Termination Style	Screw with Captive Plate
Number of Contacts	10
Housing Color	Black
Voltage	300V
Number of Circuits	10
Number of Levels	2
Current	15A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	26 AWG
Number of Poles	10
Contact Mating Finish	Tin
Voltage - UL	300V
Wire Gauge or Range - AWG	12-26 AWG
Current - UL	15A
Torque - Screw	1.13 Nm (10.0 Lb-In)
Positions Per Level	5
Plug Wire Entry	90°
Wire Strip Length	7.87mm
Number of Positions Per Level	10
Length	57.66mm
Width	17.52mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

FXPT10200 Product Details

FXPT10200 Overview

There is a mounting type of Free Hanging (In-Line) for this device.In order to package the product, a Bulk case is used.The product is a part of the FXP FlexiPlug? Series.Several benefits come from the Retention Latches (Non-Wire Side) feature.In this case, Cable, Free Hanging mounts the part.Circuits number 10 in the part.It operates at an operating temperature of 105°C.There are a number of benefits that this part has in common with other Plug, Female Sockets products.
