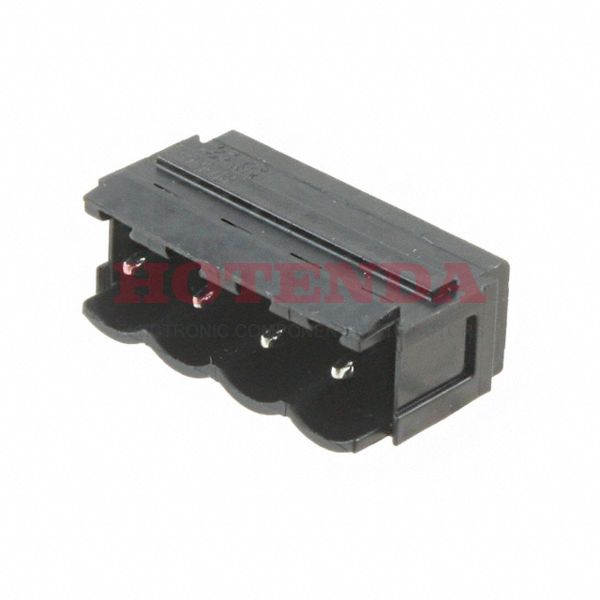

Name: 1515110000
Brand: Weidmüller
SKU: 1515110000
Price: 1.80000 USD
Availability: InStock

new-10%

1515110000

Manufacturer part number:1515110000

Manufacturer:Weidmüller

Description:1515110000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1515110000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	14 Weeks
Contact Material	Copper Alloy
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polybutylene Terephthalate (PBT)
Operating Temperature	-20°C~100°C
Packaging	Bulk
Published	2002
Series	Omnimate SL
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	Not Applicable
Type	Header, Male Pins, Shrouded (4 Side)
Color	Black
Number of Rows	1
Gender	Male
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.200 5.08mm
Total Number of Contacts	4
Orientation	Right Angle
Depth	12mm
Insulation Height	0.335 8.51mm
Current Rating	15A
Termination Style	Solder
Insulation Resistance	1MOhm
Voltage	300V
Contact Tail Length	0.177 4.50mm
Max Current Rating	15A
Number of Levels	1
Current	15A
Contact Mating Finish	Tin
Voltage - IEC	250V
Header Orientation	90°, Right Angle
Current - IEC	12A
Number of Positions Per Level	4
Width	12mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1515110000 Product Details

1515110000 Overview

This device has a Through Hole mounting type.Packaged in a Bulk case.It's from the Omnimate SL Series.It is mounted by Through Hole.The device runs in -20°C~100°C Operating Temperature.
