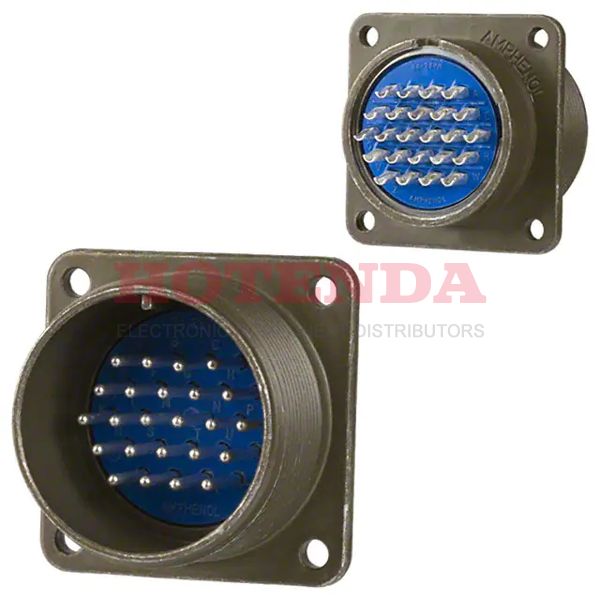

Name: 97-3102A-24-28P
Brand: Amphenol Industrial Operations
SKU: 97-3102A-24-28P
Price: 88.84000 USD
Availability: InStock

new

97-3102A-24-28P

Manufacturer part number:97-3102A-24-28P

Manufacturer:Amphenol Industrial Operations

Description:Receptacle, Male Pins Aluminum Alloy Panel Mount 24 Positions Solder Cup Silver Olive Drab Chromate over Cadmium Bulk N (Normal) Threaded

Case Package:SOT-23

Datasheet:97-3102A-24-28P Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	14 Weeks
Contact Material	Copper Alloy
Mount	Box, Chassis, Flanges, Panel
Mounting Type	Panel Mount
Package / Case	Metal
Mounting Feature	Flange
Insulation Material	Plastic
Shell Material	Aluminum Alloy
Insert Material	Diallyl Phthalate (DAP)
Body Material	Aluminium
Operating Temperature	-55°C~125°C
Packaging	Bulk
Series	97
Published	2001
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder Cup
Connector Type	Receptacle, Male Pins
Number of Positions	24
Color	Olive Drab
Applications	Automotive, Industrial
Gender	Receptacle
Additional Feature	STANDARD: MIL-C-5015
Fastening Type	Threaded
Voltage - Rated DC	250V
Contact Finish - Mating	Silver
MIL Conformance	YES
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Total Number of Contacts	24
Orientation	N (Normal)
Shielding	Unshielded
Current Rating	13A
Military Standard	MIL-DTL-5015
Shell Finish	Olive Drab Chromate over Cadmium
Shell Size - Insert	24-28
Voltage - Rated AC	250V
Approval Agency	CSA, UL
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Contact Gender	Male
Empty Shell	NO
Backshell Type	SOLID
Contact Style	Pin
Environmental Characteristics	ENVIRONMENT RESISTANT
Plating	Cadmium, Chromate
Body Plating	Cadmium
Length	34.11mm
Width	44.45mm
REACH SVHC	No SVHC
Radiation Hardening	No
RoHS Status	Non-RoHS Compliant
Lead Free	Contains Lead

97-3102A-24-28P Product Details

97-3102A-24-28P Overview

This product is packaged in a Receptacle, Male Pins box.Panel Mount indicates that the device is mounted.An Bulk case is utilized for packaging the product.The product is a part of the 97 Series.Furthermore, there are other features such as STANDARD: MIL-C-5015, to name a few.Metal refers to a package enclosing a device.By Box, Chassis, Flanges, Panel, the part is mounted.Operating temperature is set to -55°C~125°C.
