Name: PT06SE-16-26S(SR)
Brand: Amphenol Industrial Operations
SKU: PT06SE-16-26S(SR)
Price: 129.20000 USD
Availability: InStock

new

PT06SE-16-26S(SR)

Manufacturer part number:PT06SE-16-26S(SR)

Manufacturer:Amphenol Industrial Operations

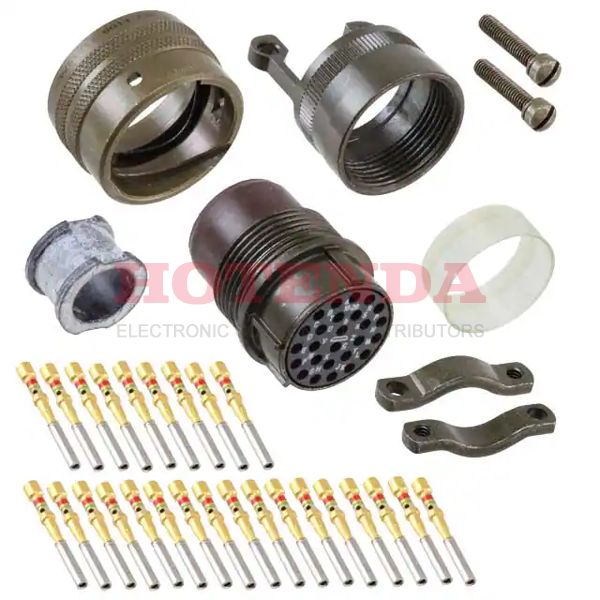

Description:Plug, Female Sockets Aluminum Free Hanging (In-Line) 26 Positions Crimp Gold Olive Drab Chromate over Cadmium Bulk N (Normal) Bayonet Lock

Case Package:SOT-23

Datasheet:PT06SE-16-26S(SR) Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	16 Weeks
Contact Material	Copper Alloy
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Shell Material	Aluminum
Insert Material	Neoprene
Body Material	Aluminium
Operating Temperature	-55°C~125°C
Packaging	Bulk
Published	2002
Series	MIL-DTL-26482 Series I, PT
Feature	Strain Relief
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Crimp
Connector Type	Plug, Female Sockets
Number of Positions	26
Color	Olive Drab
Applications	Aerospace, Industrial, Instrumentation, Mass Transit, Military
Voltage - Rated	600V
Fastening Type	Bayonet Lock
Contact Finish - Mating	Gold
MIL Conformance	YES
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Total Number of Contacts	26
Orientation	N (Normal)
Shielding	Unshielded
Ingress Protection	Environment Sealed
Current Rating	7.5A
Military Standard	MIL-DTL-26482
Shell Finish	Olive Drab Chromate over Cadmium
Shell Size - Insert	16-26
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Contact Gender	Female
Empty Shell	NO
Backshell Type	SOLID
Contact Style	Socket
Environmental Characteristics	ENVIRONMENT/MOISTURE RESISTANT
Plating	Cadmium, Chromate
Wire Gauge (Max)	24 AWG
Wire Gauge (Min)	20 AWG
Body Plating	Cadmium
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	Non-RoHS Compliant
Ratings	Environment Resistant

PT06SE-16-26S(SR) Product Details

PT06SE-16-26S(SR) Overview

The packaging is Plug, Female Sockets.Mounting type is Free Hanging (In-Line).To package the product, we use a Bulk case.This product is from the MIL-DTL-26482 Series I, PT Series.A number of advantages are provided by its Strain Relief feature.Mounted by Cable, Free Hanging.Device runs at -55°C~125°C Operating Temperature.
