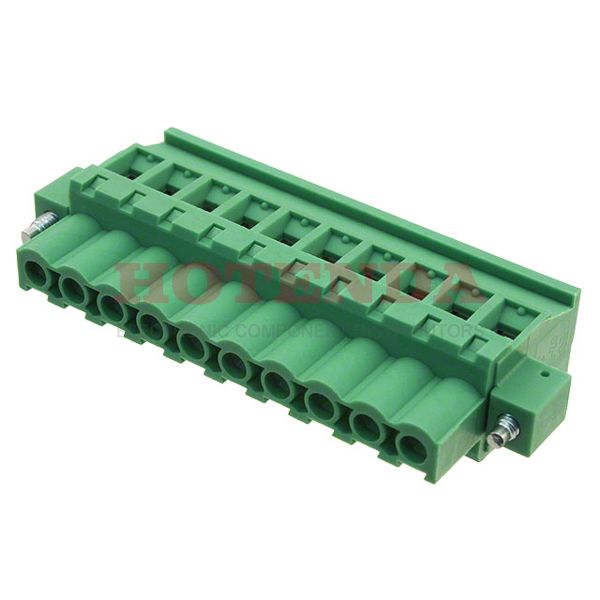

Name: 20020011-H101B01LF
Brand: Amphenol Anytek
SKU: 20020011-H101B01LF
Price: 2.17000 USD
Availability: InStock

new-10%

20020011-H101B01LF

Manufacturer part number:20020011-H101B01LF

Manufacturer:Amphenol Anytek

Description:20020011-H101B01LF datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Amphenol Anytek stock available on our website

Case Package:SOT-23

Datasheet:20020011-H101B01LF Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Contact Material	Copper Alloy
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Thermoplastic Resin
Operating Temperature	-40°C~115°C
Packaging	Bulk
Published	2011
Series	02-508
Feature	Mating Flange, Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Terminal Block
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Voltage - Rated	300V
HTS Code	8536.69.40.40
Pitch	0.200 5.08mm
Orientation	Straight
Depth	12.6mm
Insulation Height	1.024 26.01mm
Current Rating	8A
Termination Style	Screw - Rising Cage Clamp
Number of Contacts	10
Voltage	300V
Max Voltage Rating (AC)	300V
Max Current Rating	12A
Number of Levels	1
Current	12A
Wire Gauge (Max)	24 AWG
Wire Gauge (Min)	12 AWG
Wire/Cable Gauge	24 AWG
Contact Mating Finish	Tin
Number of Decks	1
Wire Gauge or Range - AWG	12-24 AWG
Torque - Screw	0.4 Nm (3.5 Lb-In)
Number of Ways	10
Safety Approval	UL
Plug Wire Entry	270°
Wire Gauge or Range - mm²	1-2.5mm2
Wire Strip Length	6-7mm
Screw Size	M3
Wire Cross Section	2.5 mm2
Max Supply Voltage (AC)	300V
Length	60.4mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	ROHS3 Compliant

20020011-H101B01LF Product Details

20020011-H101B01LF Overview

Packaging is in the form of Terminal Block.This device is mounted in the Free Hanging (In-Line) position.We use a Bulk case to package the product.Among the products in the 02-508 Series, it is one of the most popular.There are a number of advantages to its Mating Flange, Retention Latches (Non-Wire Side) feature.You've got Cable, Free Hanging mounted on the part.This device operates at a temperature of -40°C~115°C.This part shares lots of benefits with other Plug, Female Sockets products.
