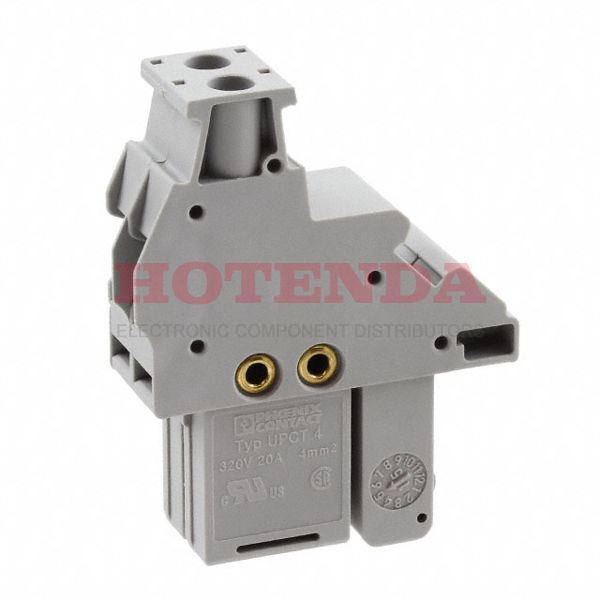

3057461

3057461

3057461

Phoenix Contact

3057461 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

SOT-23

3057461 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 4 Weeks
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
PackagingBulk
Published 2011
Series CLIPLINE
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Plug, Female Sockets
Number of Positions 2
Color Gray
Insulation Height 1.909 48.50mm
Reach Compliance Code not_compliant
Termination Style Screw
Voltage 300V
Number of Levels 1
Current 25A
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 10 AWG
Voltage - UL 300V
Wire Gauge or Range - AWG 10-26 AWG
Voltage - IEC 320V
Torque - Screw 0.6-0.8 Nm (5.3-7.1 Lb-In)
Plug Wire Entry 90°
Wire Gauge or Range - mm² 0.14-6mm2
Wire Strip Length 9mm
Current - IEC 20A
Screw Size M3
Width 12.4mm
Material Flammability Rating UL94 V-0
RoHS StatusRoHS Compliant
In-Stock:635 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$8.333966$8.333966
10$7.862233$78.62233
100$7.417201$741.7201
500$6.997359$3498.6795
1000$6.601282$6601.282

3057461 Product Details

3057461 Overview


Mounting type Free Hanging (In-Line) is selected for the device.Packaging is performed using a Bulk case.The product is a part of the CLIPLINE Series.There is a mounting hole at Free Hanging.There are many benefits that this part shares with other Plug, Female Sockets products as well.

3057461 Features


CLIPLINE series

3057461 Applications


There are a lot of Phoenix Contact 3057461 Terminal Blocks applications.

  • Control panels
  • Blowers
  • Transportation
  • All Electrical Machinery
  • Instrumentation
  • Medical technology
  • Military Technology
  • Variable speed/frequency drivers
  • Industrial Automation
  • Data Technology
