Name: 30320-6002HB
Brand: 3M
SKU: 30320-6002HB
Price: 1.01000 USD
Availability: InStock

new-10%

30320-6002HB

Manufacturer part number:30320-6002HB

Manufacturer:3M

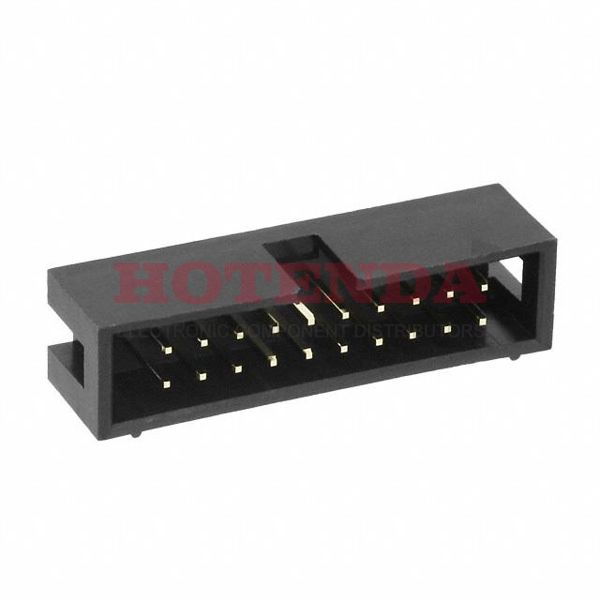

Description:303 Series 2-Row Header Solder Brass Bulk Through Hole Gold Polybutylene Terephthalate (PBT), Polyester, Glass Filled 20-Position Board to Board or Cable 0.366 9.30mm Height

Case Package:SOT-23

Datasheet:30320-6002HB Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	9 Weeks
Contact Material	Brass
Contact Plating	Gold
Mount	Through Hole
Mounting Type	Through Hole
Contact Shape	Square
Insulation Material	Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Housing Material	Polyester
Operating Temperature	-55°C~105°C
Packaging	Bulk
Series	303
Published	2008
Feature	Keying Slot
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Header
Number of Positions	20
Max Operating Temperature	105°C
Min Operating Temperature	-55°C
Color	Black
Number of Rows	2
Gender	Male
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Type	Male Pin
Current Rating (Amps)	1A
Pitch	2.54mm
Orientation	Straight
Depth	8.78mm
Insulation Height	0.366 9.30mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Current Rating	1A
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Row Spacing - Mating	0.100 (2.54mm)
Contact Length - Post	0.110 2.79mm
Shrouding	Shrouded - 4 Wall
Number of Contacts	20
Contact Finish - Post	Gold
Contact Length - Mating	0.236 6.00mm
Housing Color	Black
Max Current Rating	1A
Length	33mm
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

30320-6002HB Product Details

30320-6002HB Overview

Packaging for this item is Header.There is a mounting type of Through Hole for this device.It is necessary to use a Bulk case for packaging the product.This product is part of the 303 Series.You should use it when it's below 105°C.A minimum temperature of -55°C is required for the operation of this device.In many ways, its Keying Slot feature makes it more powerful.Through Hole is used to mount the part.In this case, the device operates at -55°C~105°C Operating Temperature.
