Name: FTS-127-01-F-DV
Brand: Samtec Inc.
SKU: FTS-127-01-F-DV
Price: 9.42000 USD
Availability: InStock

new

FTS-127-01-F-DV

Manufacturer part number:FTS-127-01-F-DV

Manufacturer:Samtec Inc.

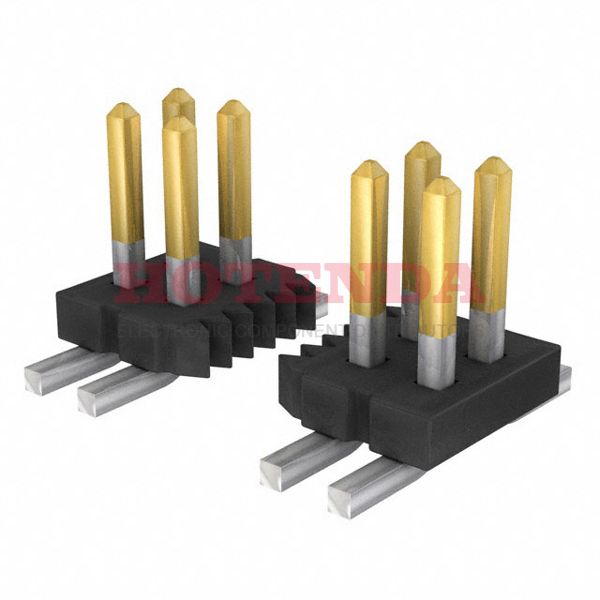

Description:FTS Series 2-Row Header, Cuttable Solder Phosphor Bronze Tube Surface Mount Gold Liquid Crystal Polymer (LCP) 54-Position Board to Board or Cable 0.034 0.86mm Height

Case Package:SOT-23

Datasheet:FTS-127-01-F-DV Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Phosphor Bronze
Mount	Surface Mount
Mounting Type	Surface Mount
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Operating Temperature	-55°C~125°C
Packaging	Tube
Published	2012
Series	FTS
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Header, Cuttable
Number of Positions	54
Number of Rows	2
Gender	Male
Additional Feature	LOW PROFILE
HTS Code	8536.69.40.40
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Male Pin
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	3.4A per Contact
Total Number of Contacts	54
Insulation Height	0.034 0.86mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Pitch - Mating	0.050 1.27mm
Insulation Color	Black
Row Spacing - Mating	0.050 (1.27mm)
Shrouding	Unshrouded
Contact Finish - Post	Tin
Contact Length - Mating	0.120 3.05mm
Contact Finish Thickness - Mating	3.00μin 0.076μm
Material Flammability Rating	UL94 V-0
REACH SVHC	No SVHC
Radiation Hardening	No
RoHS Status	ROHS3 Compliant

FTS-127-01-F-DV Product Details

FTS-127-01-F-DV Overview

A Header, Cuttable package is included with it.Its mounting type is Surface Mount.Packaging is performed using a Tube case.It is part of the FTS Series of products.Additionally, there are other features, such as LOW PROFILE.Surface Mount mounts the part.There is no operating temperature for the device.
