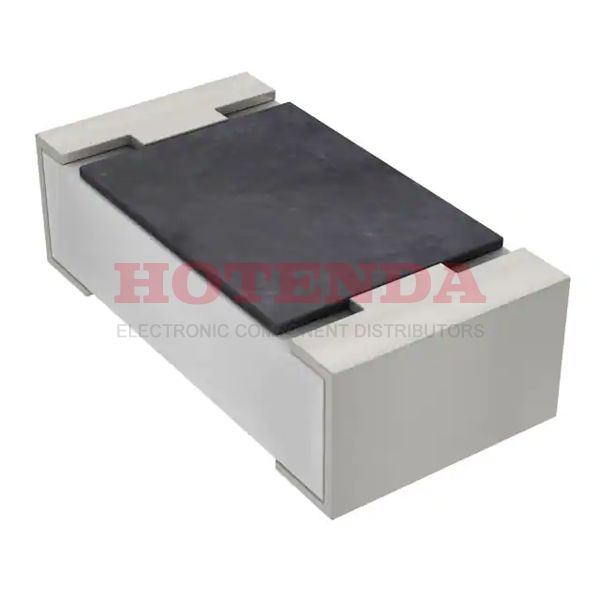

RT0805FRE0710RL

RT0805FRE0710RL

RT0805FRE0710RL

Yageo

RES SMD 10 OHM 1% 1/8W 0805

SOT-23

RT0805FRE0710RL Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 24 Weeks
Contact PlatingLead, Tin
Package / Case 0805 (2012 Metric)
Surface MountYES
Terminal Shape WRAPAROUND
Mounting FeatureSURFACE MOUNT
Operating Temperature-55°C~155°C
PackagingTape & Reel (TR)
Published 2009
Series RT
Size / Dimension 0.079Lx0.049W 2.00mmx1.25mm
Tolerance ±1%
JESD-609 Code e3
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Temperature Coefficient±50ppm/°C
Resistance 10Ohm
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Composition Thin Film
Power (Watts) 0.125W 1/8W
Voltage - Rated 150V
Additional FeatureHIGH PRECISION
Power Rating 125mW
Voltage - Rated DC 150V
Packing Method TR, Paper, 7 Inch
Max Power Dissipation125mW
Construction Rectangular
Resistor Type FIXED RESISTOR
Case Code (Metric) 2012
Case Code (Imperial) 0805
Height 600μm
Height Seated (Max) 0.024 0.60mm
Radiation HardeningNo
REACH SVHC No SVHC
RoHS StatusROHS3 Compliant
Lead Free Lead Free
In-Stock:53445 items

Pricing & Ordering

QuantityUnit PriceExt. Price

RT0805FRE0710RL Product Details

The Yageo Chip Resistor - Surface Mount RT0805FRE0710RL is a high-performance, reliable resistor designed for use in a variety of applications. This resistor features a resistance value of 10 ohms, a tolerance of 1%, and a power rating of 1/8 watt. It is constructed with a surface mount design, making it ideal for use in tight spaces. The resistor is made from high-quality materials, ensuring long-term durability and reliability. It is also RoHS compliant, making it safe for use in a variety of environments. The Yageo Chip Resistor - Surface Mount RT0805FRE0710RL is an excellent choice for any application requiring a reliable, high-performance resistor.
