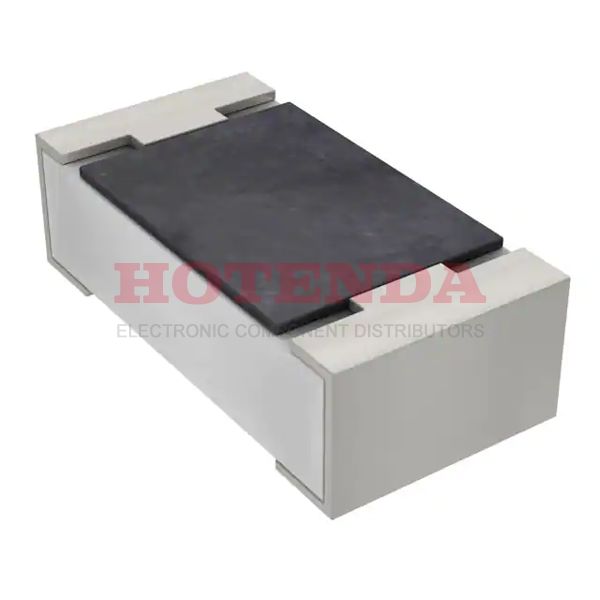

RT0603BRB0716K9L

new-10%

Manufacturer part number:RT0603BRB0716K9L

Manufacturer:Yageo

Description:Thin Film Resistors - SMD 1/10W 16.9K ohm .1% 10ppm

Case Package:SOT-23

Datasheet:RT0603BRB0716K9L Datasheet

RoHs Status:non-compliant

Name	Value
Type	Parameter
Factory Lead Time	24 Weeks
Package / Case	0603 (1608 Metric)
Surface Mount	YES
Terminal Shape	WRAPAROUND
Mounting Feature	SURFACE MOUNT
Operating Temperature	-55°C~155°C
Packaging	Tape & Reel (TR)
Series	RT
Size / Dimension	0.063Lx0.031W 1.60mmx0.80mm
Tolerance	±0.1%
JESD-609 Code	e3
Feature	Moisture Resistant
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
Termination	SMD/SMT
ECCN Code	EAR99
Temperature Coefficient	±10ppm/°C
Resistance	16.9kOhm
Terminal Finish	Matte Tin (Sn) - with Nickel (Ni) barrier
Composition	Thin Film
Power (Watts)	0.1W 1/10W
Voltage - Rated	75V
Additional Feature	HIGH PRECISION
Power Rating	100mW
Packing Method	TR, Paper, 7 Inch
Max Power Dissipation	100mW
Construction	Rectangular
Resistor Type	FIXED RESISTOR
Case Code (Metric)	1608
Rated Power Dissipation (P)	0.1W
Case Code (Imperial)	0603
Height	550μm
Height Seated (Max)	0.022 0.55mm
RoHS Status	ROHS3 Compliant
