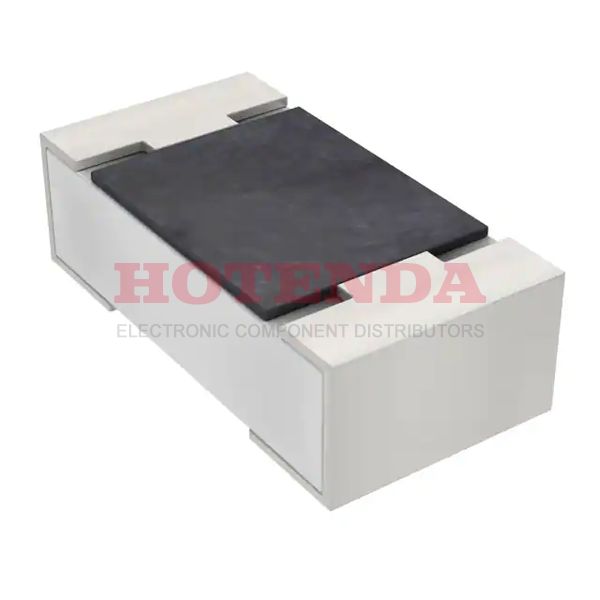

RC0402JR-073R6L

new-10%

Manufacturer part number:RC0402JR-073R6L

Manufacturer:Yageo

Description:FIXED RESISTOR SURFACE MOUNT, RC Series, Thick Film, 3.6Ohm, 0.063W 1/16W, ±5%, -55°C~155°C

Case Package:SOT-23

Datasheet:RC0402JR-073R6L Datasheet

RoHs Status:non-compliant

Name	Value
Type	Parameter
Factory Lead Time	24 Weeks
Contact Plating	Tin
Package / Case	0402 (1005 Metric)
Surface Mount	YES
Terminal Shape	WRAPAROUND
Mounting Feature	SURFACE MOUNT
Operating Temperature	-55°C~155°C
Packaging	Tape & Reel (TR)
Series	RC
Published	2010
Size / Dimension	0.039Lx0.020W 1.00mmx0.50mm
Tolerance	±5%
JESD-609 Code	e3
Feature	Moisture Resistant
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
ECCN Code	EAR99
Temperature Coefficient	±200ppm/°C
Resistance	3.6Ohm
Composition	Thick Film
Power (Watts)	0.063W 1/16W
Power Rating	63mW
Packing Method	TR, Paper, 7 Inch
Max Power Dissipation	63mW
Construction	Rectangular
Resistor Type	FIXED RESISTOR
Case Code (Metric)	1005
Case Code (Imperial)	0402
Working Voltage	50V
Height	406.4μm
Height Seated (Max)	0.016 0.40mm
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free
