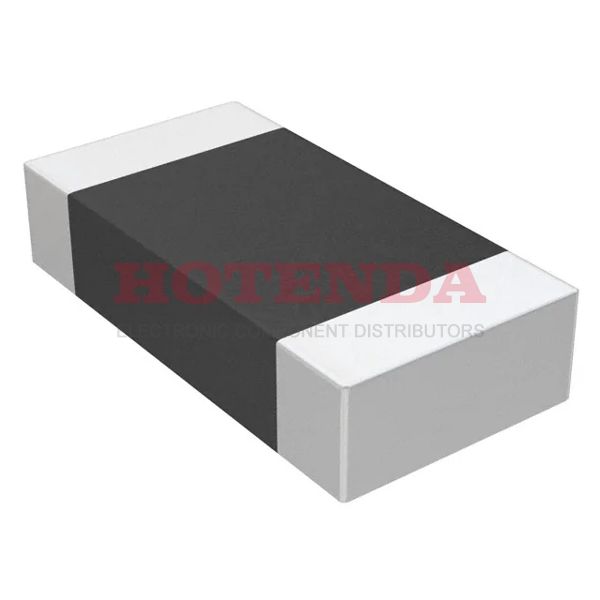

Name: CC1206KKX7R7BB564
Brand: Yageo
SKU: CC1206KKX7R7BB564
Price: 0.44000 USD
Availability: InStock

new-10%

CC1206KKX7R7BB564

Manufacturer part number:CC1206KKX7R7BB564

Manufacturer:Yageo

Description:CC1206KKX7R7BB564 datasheet pdf and Ceramic Capacitors product details from Yageo stock available on our website

Case Package:SOT-23

Datasheet:CC1206KKX7R7BB564 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	33 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount, MLCC
Package / Case	1206 (3216 Metric)
Terminal Shape	WRAPAROUND
Material	Ceramic
Operating Temperature	-55°C~125°C
Packaging	Tape & Reel (TR)
Published	2010
Series	CC
Size / Dimension	0.126Lx0.063W 3.20mmx1.60mm
Tolerance	±10%
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
Termination	SMD/SMT
ECCN Code	EAR99
Temperature Coefficient	X7R
Terminal Finish	Matte Tin (Sn) - with Nickel (Ni) barrier
Applications	General Purpose
HTS Code	8532.24.00.20
Capacitance	0.56μF
Voltage - Rated DC	16V
Packing Method	TR, BLISTER, 7 INCH
Depth	1.6mm
Case Code (Metric)	3216
Case Code (Imperial)	1206
Temperature Characteristics Code	X7R
Multilayer	Yes
Halogen Free	Halogen Free
Height	1.15mm
Thickness (Max)	0.075 1.90mm
Thickness	1.905mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

CC1206KKX7R7BB564 Product Details

CC1206KKX7R7BB564 Overview

This device's program size/dimension is 0.126Lx0.063W 3.20mmx1.60mm.Temperature coefficient of resistance refers to the change in electrical resistance of a substance per degree change in temperature, with X7R being the highest temperature coefficient.The voltage - Rated DC of 16V allows it to function.
