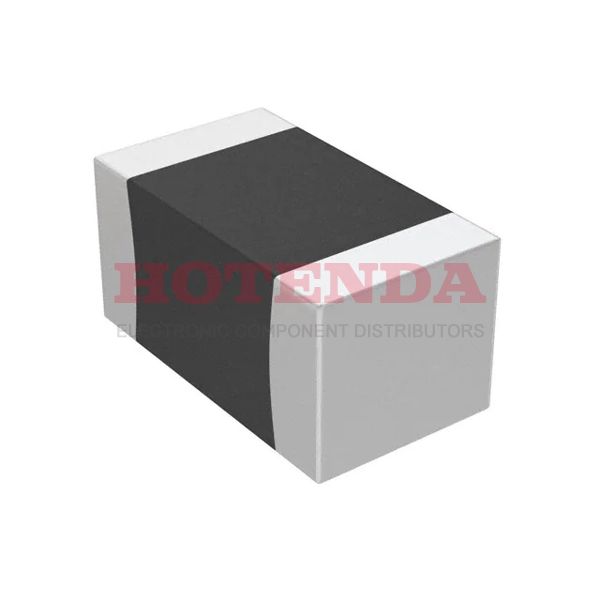

Name: CC0603CRNPO9BN4R7
Brand: Yageo
SKU: CC0603CRNPO9BN4R7
Price: 0.10000 USD
Availability: InStock

new-10%

CC0603CRNPO9BN4R7

Manufacturer part number:CC0603CRNPO9BN4R7

Manufacturer:Yageo

Description:CC 4.7pF Ceramic Capacitor ±0.25pF C0G NP0 0.063Lx0.031W 1.60mmx0.80mm -55°C~125°C 2 Terminations Surface Mount, MLCC 0603 (1608 Metric)

Case Package:SOT-23

Datasheet:CC0603CRNPO9BN4R7 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	33 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount, MLCC
Package / Case	0603 (1608 Metric)
Terminal Shape	WRAPAROUND
Number of Pins	2
Dielectric Material	Ceramic
Weight	2.012816mg
Operating Temperature	-55°C~125°C
Packaging	Tape & Reel (TR)
Series	CC
Published	2010
Size / Dimension	0.063Lx0.031W 1.60mmx0.80mm
Tolerance	±0.25pF
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
Termination	SMD/SMT
Temperature Coefficient	C0G NP0
Terminal Finish	Matte Tin (Sn) - with Nickel (Ni) barrier
Applications	General Purpose
Capacitance	4.7pF
Voltage - Rated DC	50V
Packing Method	TR, PAPER, 7 INCH
Depth	800μm
Voltage - Rated AC	50V
Case Code (Metric)	1608
Case Code (Imperial)	0603
Dielectric	C0G
Temperature Characteristics Code	C0G
Multilayer	Yes
Insulation Resistance	100GOhm
Voltage	50V
Halogen Free	Halogen Free
Height	800μm
Length	1.6mm
Width	0.8mm
Thickness (Max)	0.035 0.90mm
Thickness	889μm
REACH SVHC	Unknown
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

CC0603CRNPO9BN4R7 Product Details

CC0603CRNPO9BN4R7 Overview

A program's size/dimension is 0.063Lx0.031W 1.60mmx0.80mm for this device.Its coefficient is C0G NP0 and determines the change in resistance per degree of temperature for a substance.With the voltage 50V, it is capable of operating.A capacitor's resistance is 100GOhm because it is measured between two electrical conductors separated by an insulating material, and as such its insulation resistance is 100GOhm.
