Name: CC0402CRNPO9BN2R0
Brand: Yageo
SKU: CC0402CRNPO9BN2R0
Price: 0.10000 USD
Availability: InStock

new-10%

CC0402CRNPO9BN2R0

Manufacturer part number:CC0402CRNPO9BN2R0

Manufacturer:Yageo

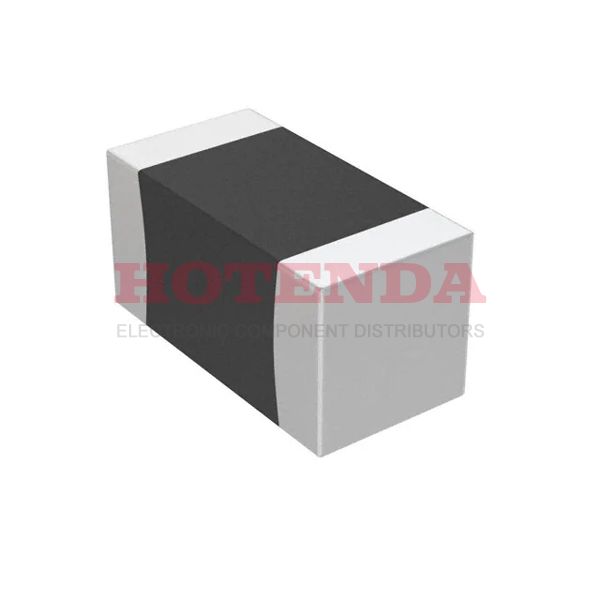

Description:CC 2pF Ceramic Capacitor ±0.25pF C0G NP0 0.039Lx0.020W 1.00mmx0.50mm -55°C~125°C 2 Terminations Surface Mount, MLCC 0402 (1005 Metric)

Case Package:SOT-23

Datasheet:CC0402CRNPO9BN2R0 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	33 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount, MLCC
Package / Case	0402 (1005 Metric)
Terminal Shape	WRAPAROUND
Number of Pins	2
Weight	652.039032μg
Operating Temperature	-55°C~125°C
Packaging	Tape & Reel (TR)
Series	CC
Published	2010
Size / Dimension	0.039Lx0.020W 1.00mmx0.50mm
Tolerance	±0.25pF
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
Termination	SMD/SMT
Temperature Coefficient	C0G NP0
Terminal Finish	Matte Tin (Sn) - with Nickel (Ni) barrier
Composition	Ceramic
Applications	General Purpose
Capacitance	2pF
Voltage - Rated DC	50V
Packing Method	TR, PAPER, 7 INCH
Depth	500μm
Case Code (Metric)	1005
Case Code (Imperial)	0402
Dielectric	C0G
Temperature Characteristics Code	C0G
Multilayer	Yes
Halogen Free	Halogen Free
Height	500μm
Length	1mm
Width	0.5mm
Thickness (Max)	0.022 0.55mm
Thickness	558.8μm
REACH SVHC	No SVHC
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

CC0402CRNPO9BN2R0 Product Details

CC0402CRNPO9BN2R0 Overview

This device's program size/dimension is 0.039Lx0.020W 1.00mmx0.50mm.A substance's temperature coefficient of resistance is generally defined as how its electrical resistance changes with per degree change in temperature.A voltage of 50V can be used for operation.
