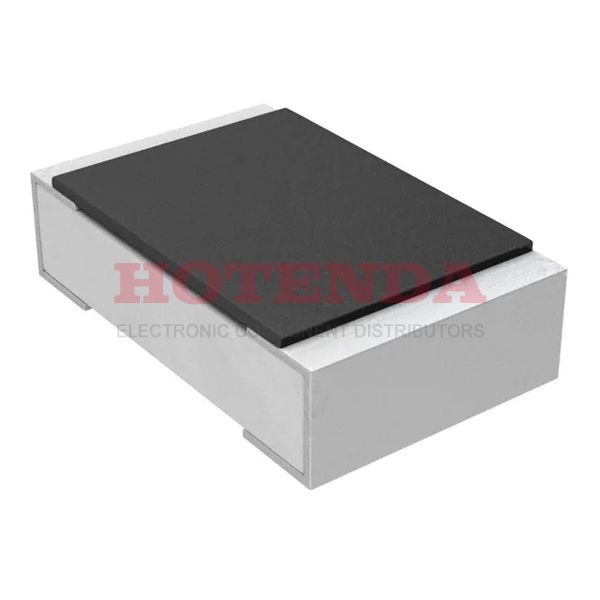

Res Thick Film 0805 360 Ohm 1% 0.125W(1/8W) ±100ppm/C Sulfur Resistant Molded SMD Automotive Paper T/R
SOT-23
AC0805FR-07360RL Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Factory Lead Time
33 Weeks
Package / Case
0805 (2012 Metric)
Surface Mount
YES
Terminal Shape
WRAPAROUND
Operating Temperature
-55°C~155°C
Packaging
Tape & Reel (TR)
Published
2012
Series
AC
Size / Dimension
0.079Lx0.049W 2.00mmx1.25mm
Tolerance
±1%
JESD-609 Code
e3
Feature
Automotive AEC-Q200, Moisture Resistant
Pbfree Code
yes
Part Status
Active
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Number of Terminations
2
ECCN Code
EAR99
Temperature Coefficient
±100ppm/°C
Resistance
360Ohm
Terminal Finish
Matte Tin (Sn) - with Nickel (Ni) barrier
Composition
Thick Film
Power (Watts)
0.125W 1/8W
Voltage - Rated
150V
Additional Feature
LASER TRIMMABLE
Packing Method
TR, PAPER, 7 INCH
Max Power Dissipation
125mW
Depth
1.25mm
Construction
Rectangular
Resistor Type
FIXED RESISTOR
Military Standard
Not
Height
600μm
Height Seated (Max)
0.024 0.60mm
RoHS Status
ROHS3 Compliant
Ratings
AEC-Q200
In-Stock:67257 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
1
$0.014917
$0.014917
500
$0.010968
$5.484
1000
$0.009141
$9.141
2000
$0.008386
$16.772
5000
$0.007837
$39.185
10000
$0.007291
$72.91
15000
$0.007050
$105.75
50000
$0.006933
$346.65
AC0805FR-07360RL Product Details
The Yageo Chip Resistor - Surface Mount AC0805FR-07360RL is a high-performance, reliable resistor designed for use in automotive applications. This resistor is constructed with a thick film 0805 package and has a resistance of 360 Ohms with a tolerance of 1%. It has a power rating of 0.125W (1/8W) and a temperature coefficient of ±100ppm/C. The resistor is also sulfur resistant and is molded in a SMD package. It is supplied in a paper tape and reel for easy installation. The Yageo Chip Resistor - Surface Mount AC0805FR-07360RL is an ideal choice for automotive applications that require a reliable, high-performance resistor.
