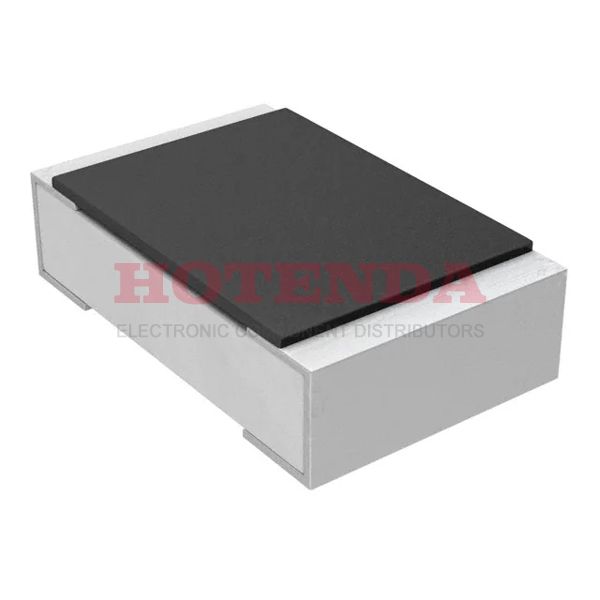

AC0603JR-071RL

new-10%

Manufacturer part number:AC0603JR-071RL

Manufacturer:Yageo

Description:FIXED RESISTOR AC Series, Thick Film, 1Ohm, 0.1W 1/10W, ±5%, -55°C~155°C

Case Package:SOT-23

Datasheet:AC0603JR-071RL Datasheet

RoHs Status:non-compliant

Name	Value
Type	Parameter
Factory Lead Time	24 Weeks
Package / Case	0603 (1608 Metric)
Surface Mount	YES
Terminal Shape	WRAPAROUND
Operating Temperature	-55°C~155°C
Packaging	Tape & Reel (TR)
Series	AC
Published	2012
Size / Dimension	0.063Lx0.031W 1.60mmx0.80mm
Tolerance	±5%
JESD-609 Code	e3
Feature	Automotive AEC-Q200, Moisture Resistant
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
Termination	SMD/SMT
ECCN Code	EAR99
Temperature Coefficient	±200ppm/°C
Resistance	1Ohm
Terminal Finish	Matte Tin (Sn) - with Nickel (Ni) barrier
Composition	Thick Film
Power (Watts)	0.1W 1/10W
Voltage - Rated	50V
Additional Feature	LASER TRIMMABLE
Power Rating	100mW
Packing Method	TR, PAPER, 7 INCH
Max Power Dissipation	100mW
Construction	Rectangular
Resistor Type	FIXED RESISTOR
Case Code (Metric)	1608
Rated Power Dissipation (P)	0.1W
Case Code (Imperial)	0603
Height	558.8μm
Height Seated (Max)	0.022 0.55mm
RoHS Status	ROHS3 Compliant
Ratings	AEC-Q200
