ECS130US24

  • ECS130US24 - ECS130US24 datasheet pdf and AC DC Converters product details from XP Power stock available on our website
  • ECS130US24 - ECS130US24 datasheet pdf and AC DC Converters product details from XP Power stock available on our website

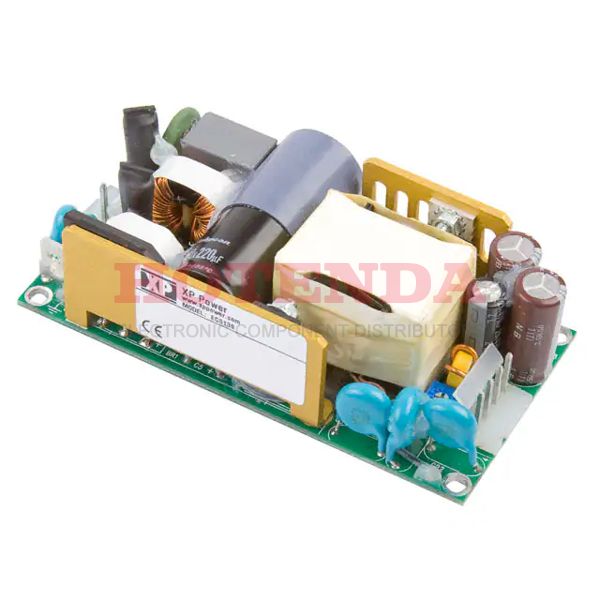

ECS130US24

ECS130US24

XP Power

ECS130US24 datasheet pdf and AC DC Converters product details from XP Power stock available on our website

SOT-23

ECS130US24 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 24 Weeks
Mount Chassis, Chassis Mount
Mounting Type Chassis Mount
Operating Temperature-20°C~70°C With Derating
Published 2010
Series ECS (130W)
Size / Dimension 4.00Lx2.00W x 1.25 H 101.6mmx50.8mmx31.8mm
Feature Adjustable Output, DC Input Capable, Universal Input
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Open Frame
Applications ITE (Commercial), Medical
Power (Watts) 100W 130W Forced Air
Subcategory Power Supply Modules
Max Power Dissipation100W
Number of Outputs 1
Approval Agency CB
Efficiency 90%
Voltage - Isolation 4kV
Output Voltage 24V
Max Output Current5.4A
Voltage - Input 80V~264VAC
Output Power100W
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE
Min Input Voltage 80V
Max Input Voltage 264V
Current - Output 1 5.4A
Max Output Power130W
Minimum Load Required No
Nominal Output Voltage 24V
Height 31.75mm
Width 50.8mm
REACH SVHC Unknown
RoHS StatusROHS3 Compliant
In-Stock:124 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$69.01000$69.01
5$66.94000$334.7
10$64.87000$648.7
25$62.10920$1552.73
100$57.96860$5796.86

ECS130US24 Product Details

ECS130US24 Description


The ECS130US24 from ECS Series is an AC-DC Converter.



ECS130US24 Features


  • IT & Medical Safety Approvals

  • 65/80/100 W - Convection-cooled Ratings

  • Class I & Class II Construction

  • Industry Standard 2”x 4”Package

  • <0.5 W No Load Input Power

  • Low Leakage Current

  • 3 Year Warranty



ECS130US24 Applications


  • General Uses
