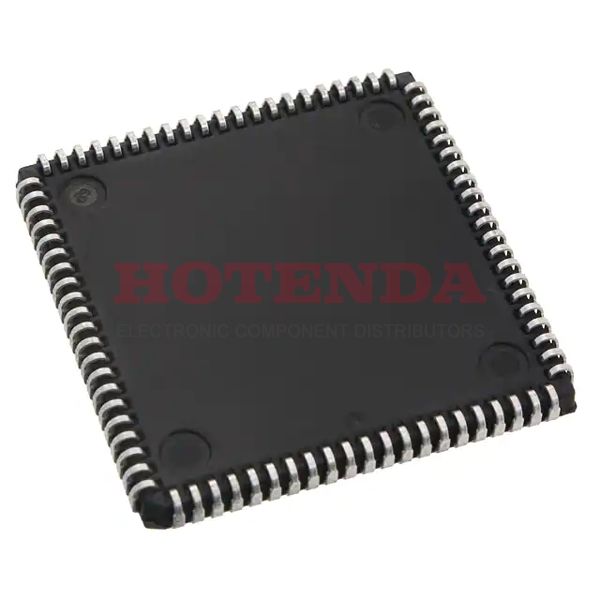

Name: XC4003E-2PC84I
Brand: Xilinx Inc.
SKU: XC4003E-2PC84I
Availability: InStock

Technical Specifications

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	84-LCC (J-Lead)
Number of Pins	84
Operating Temperature	-40°C~100°C TJ
Packaging	Tray
Published	1999
Series	XC4000E/X
JESD-609 Code	e0
Pbfree Code	no
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	84
Terminal Finish	Tin/Lead (Sn85Pb15)
Subcategory	Field Programmable Gate Arrays
Technology	CMOS
Voltage - Supply	4.5V~5.5V
Terminal Position	QUAD
Terminal Form	J BEND
Peak Reflow Temperature (Cel)	225
Supply Voltage	5V
[email protected] Reflow Temperature-Max (s)	30
Base Part Number	XC4003E
Pin Count	84
Number of Outputs	80
Operating Supply Voltage	5V
Power Supplies	5V
Number of I/O	61
RAM Size	400B
Programmable Logic Type	FIELD PROGRAMMABLE GATE ARRAY
Number of Logic Elements/Cells	238
Total RAM Bits	3200
Number of Gates	3000
Number of LABs/CLBs	100
Speed Grade	2
Number of Registers	360
Combinatorial Delay of a CLB-Max	1.6 ns
Number of CLBs	100
Number of Logic Cells	100
Height Seated (Max)	5.08mm
Radiation Hardening	No
RoHS Status	Non-RoHS Compliant
Lead Free	Contains Lead

XC4003E-2PC84I Product Details

XC4003E-2PC84I Overview

As part of the 84-LCC (J-Lead) package, it is included. A FIELD PROGRAMMABLE GATE ARRAY-based FPGA is one of these types. The I/Os are designed to facilitate a more coherent transfer of data. In order to construct a fundamental building block, 238 logic elements/cells are required. Power is provided by a 5V-volt supply. The Field Programmable Gate Arrays family of FPGA parts includes this part. With a Surface Mount connector, this FPGA module can be attached to the development board. With a supply voltage of 4.5V~5.5V, this device operates with ease. FPGAs belonging to the XC4000E/X series are a type of FPGA that belong to the XC4000E/X series of FPGAs. The operating temperature should be kept at -40°C~100°C TJ when operating. A total of 80 outputs are incorporated into this device. It is for space saving reasons that this FPGA model is contained in Tray. The total number of terminations is 84. The RAM bits that are offered by this fpga chips are 3200. In order to find related parts, use the part number XC4003E as a base. The RAM si400Be of this FPGA module reaches 400B so as to guarantee the normal operation of the program during operation. In order to make it work, 84 pins have been designed. 100 LABs/CLBs are configured on this FPGA. As long as this FPGA is mounted in Surface Mount, it should be able to function as it should in terms of its specifications, as well as its capabilities. When operating with the supply voltage of 5V, designers can fully make use of its flexibility. This is a battery operated device that operates on 5V. 3000 gates make up the basic block of its construction. A total of 84 pins are included in this device. A total of 360 registers are used for storing and transferring data between them. Its architecture is based on 100 CLBs. For the building block of this system, 100 logic cells are included.
