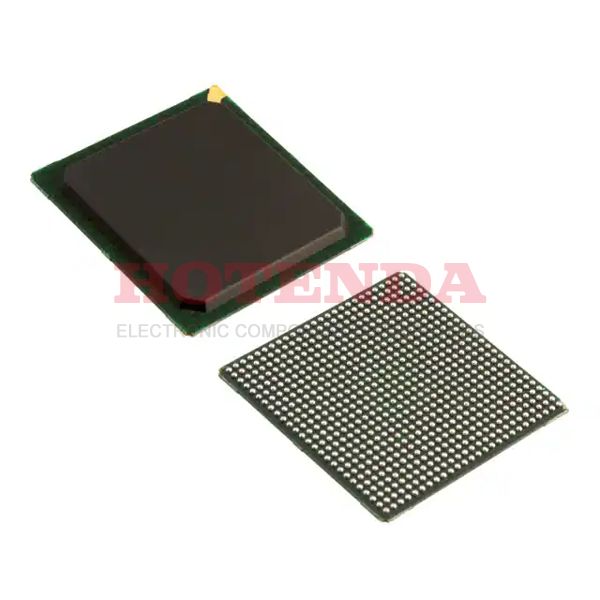

XC2VP40-5FGG676C

XC2VP40-5FGG676C

XC2VP40-5FGG676C

Xilinx Inc.

1.5V V 2.44mm mm FPGAs Virtex?-II Pro Series 676-BGA 1mm mm 676

SOT-23

XC2VP40-5FGG676C Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 6 Weeks
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 676-BGA
Number of Pins 676
Operating Temperature0°C~85°C TJ
PackagingBulk
Published 2011
Series Virtex®-II Pro
JESD-609 Code e1
Pbfree Code yes
Part StatusObsolete
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 676
ECCN Code 3A991.D
Subcategory Field Programmable Gate Arrays
Technology CMOS
Voltage - Supply 1.425V~1.575V
Terminal Position BOTTOM
Terminal FormBALL
Peak Reflow Temperature (Cel) 250
Supply Voltage 1.5V
Terminal Pitch1mm
[email protected] Reflow Temperature-Max (s) 30
Base Part Number XC2VP40
Pin Count676
Number of Outputs 416
Qualification StatusNot Qualified
Operating Supply Voltage1.5V
Number of I/O 416
RAM Size 432kB
Programmable Logic TypeFIELD PROGRAMMABLE GATE ARRAY
Number of Logic Elements/Cells 43632
Total RAM Bits 3538944
Number of LABs/CLBs 4848
Speed Grade 5
Number of Registers 38784
Combinatorial Delay of a CLB-Max 0.36 ns
Height Seated (Max) 2.44mm
Length 27mm
Width 27mm
RoHS StatusNon-RoHS Compliant
Lead Free Contains Lead
In-Stock:1964 items

Pricing & Ordering

QuantityUnit PriceExt. Price

XC2VP40-5FGG676C Product Details

XC2VP40-5FGG676C Overview


There is a 676-BGA package that includes this component. The FIELD PROGRAMMABLE GATE ARRAY-series of FPGAs are composed of this type. Fpga chips is programmed wFpga chipsh 416 I/Os for transferring data in a more coherent manner. A fundamental building block contains 43632 logic elements or cells. It is powered from a supply voltage of 1.5V. A Field Programmable Gate Arrays-series FPGA part. This FPGA module can be attached to the development board with a Surface Mount. Fpga chips operates at a voltage of 1.425V~1.575V and uses a battery to supply power. There are many types of FPGAs in the Virtex?-II Pro series, this is one of them. Fpga chips is recommended that the operating temperature be kept wFpga chipshin the range 0°C~85°C TJ while the machine is operating. With this device, you will be able to make use of 416 outputs. As a result of space limitations, this FPGA model has been included in Bulk. 676 terminations are present in total. The RAM bits that this device offer is 3538944. If you are looking for related parts, you can use the base part number XC2VP40 as a starting point. This FPGA module has a RAM si432kBe of 432kB that is sufficient to make sure that the program is able to run normally. In order to make it work, 676 pins have been designed. An array of 4848 LABs/CLBs is built into the FPGA. According to its specifications, this FPGA will be able to work fantastically as long as it is mounted in Surface Mount. Its flexibility can be fully utilized when operating with a 1.5V supply voltage. Featuring 676 pins in total, it is a versatile device. The registers used in the transfer of and storage of data are 38784 in number.

XC2VP40-5FGG676C Features


416 I/Os
Up to 3538944 RAM bits
676 LABs/CLBs
38784 registers

XC2VP40-5FGG676C Applications


There are a lot of Xilinx Inc. XC2VP40-5FGG676C FPGAs applications.

  • Data center hardware accelerators
  • Consumer Electronics
  • Industrial IoT
  • Security systems
  • Military Temperature
  • Video & Image Processing
  • Telecommunication
  • Radar and Sensors
  • Aircraft navigation
  • Wireless Communications
