XC2V2000-5FF896I

XC2V2000-5FF896I

XC2V2000-5FF896I

Xilinx Inc.

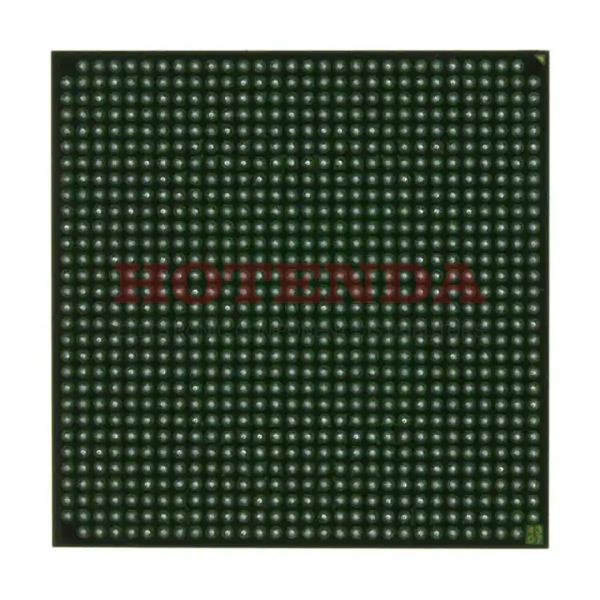

1.5V V 3.4mm mm FPGAs Virtex?-II Series 896-BBGA, FCBGA 1mm mm 896

SOT-23

XC2V2000-5FF896I Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 896-BBGA, FCBGA
Number of Pins 896
Operating Temperature-40°C~100°C TJ
PackagingTray
Published 2013
Series Virtex®-II
JESD-609 Code e0
Pbfree Code no
Part StatusObsolete
Moisture Sensitivity Level (MSL) 4 (72 Hours)
Number of Terminations 896
ECCN Code 3A991.D
Terminal Finish Tin/Lead (Sn63Pb37)
Subcategory Field Programmable Gate Arrays
Technology CMOS
Voltage - Supply 1.425V~1.575V
Terminal Position BOTTOM
Terminal FormBALL
Peak Reflow Temperature (Cel) 225
Supply Voltage 1.5V
Terminal Pitch1mm
[email protected] Reflow Temperature-Max (s) 30
Base Part Number XC2V2000
Pin Count896
Number of Outputs 624
Operating Supply Voltage1.5V
Number of I/O 624
RAM Size 126kB
Programmable Logic TypeFIELD PROGRAMMABLE GATE ARRAY
Total RAM Bits 1032192
Number of Gates2000000
Number of LABs/CLBs 2688
Speed Grade 5
Number of Registers 21504
Combinatorial Delay of a CLB-Max 0.39 ns
Number of Logic Cells24192
Height Seated (Max) 3.4mm
Length 31mm
Width 31mm
Radiation HardeningNo
RoHS StatusNon-RoHS Compliant
In-Stock:2755 items

XC2V2000-5FF896I Product Details

XC2V2000-5FF896I Overview


In the package 896-BBGA, FCBGA, this product is provided. The FIELD PROGRAMMABLE GATE ARRAY-series of FPGAs are composed of this type. Having 624 I/Os makes data transfers more coherent. In order to operate fpga chips, a voltage supply of 1.5V volts is required. The Field Programmable Gate Arrays family of FPGA parts includes this part. By attaching the Surface Mount connector, you can use this FPGA module with your development board. Fpga chips operates wFpga chipsh a supply voltage of 1.425V~1.575V. There are many types of FPGAs in the Virtex?-II series, this is one of them. Fpga chips is necessary to keep the operating temperature wFpga chipshin -40°C~100°C TJ when the device is operating. A total of 624 outputs are incorporated into this device. Using the Tray layout, this FPGA model can be contained in a very small amount of space. 896 terminations are present in total. As far as the RAM bits are concerned, this device offers you a total of 1032192. Its base part number XC2V2000 can be used to find related parts. The RAM si126kBe of this FPGA module reaches 126kB so as to guarantee the normal operation of the program during operation. In this case, there are 896 pins on the board. An array of 2688 LABs/CLBs is built into the FPGA. As long as this FPGA is mounted in Surface Mount, it could work fantastically according to its specifications. A 1.5V-volt supply allows designers to fully utilize its flexibility. There are 2000000 gates that make up its basic building block. Featuring 896 pins in total, it is a versatile device. There are 21504 registers used to store and transfer data. For the building block, it encompasses 24192 logic cells that make up the logic circuit.

XC2V2000-5FF896I Features


624 I/Os
Up to 1032192 RAM bits
896 LABs/CLBs
21504 registers

XC2V2000-5FF896I Applications


There are a lot of Xilinx Inc. XC2V2000-5FF896I FPGAs applications.

  • Wireless Communications
  • Cryptography
  • Scientific Instruments
  • Space Applications
  • Radar and Sensors
  • Camera time adjustments
  • Development Boards and Shields for Microcontrollers
  • Digital signal processing
  • Automation
  • Medical Electronics
