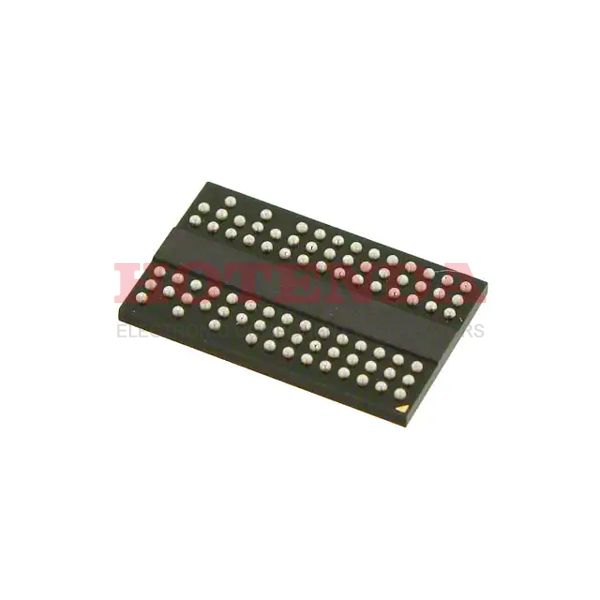

Name: W9751G6KB25I
Brand: Winbond Electronics
SKU: W9751G6KB25I
Availability: InStock

Technical Specifications

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	84-TFBGA
Number of Pins	84
Operating Temperature	-40°C~95°C TC
Packaging	Tray
Published	2014
JESD-609 Code	e1
Part Status	Last Time Buy
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	84
ECCN Code	EAR99
Terminal Finish	Tin/Silver/Copper (Sn96.5Ag3.0Cu0.5)
Additional Feature	AUTO/SELF REFRESH
HTS Code	8542.32.00.28
Technology	SDRAM - DDR2
Voltage - Supply	1.7V~1.9V
Terminal Position	BOTTOM
Number of Functions	1
Supply Voltage	1.8V
Terminal Pitch	0.8mm
Pin Count	84
Operating Supply Voltage	1.8V
Supply Voltage-Max (Vsup)	1.9V
Supply Voltage-Min (Vsup)	1.7V
Memory Size	512Mb 32M x 16
Number of Ports	1
Nominal Supply Current	165mA
Memory Type	Volatile
Clock Frequency	400MHz
Access Time	400ps
Memory Format	DRAM
Memory Interface	Parallel
Organization	32MX16
Output Characteristics	3-STATE
Memory Width	16
Write Cycle Time - Word, Page	15ns
Address Bus Width	15b
Density	512 Mb
Standby Current-Max	0.008A
Max Frequency	800MHz
I/O Type	COMMON
Refresh Cycles	8192
Sequential Burst Length	48
Interleaved Burst Length	48
Length	12.5mm
Height Seated (Max)	1.2mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant

W9751G6KB25I Product Details

W9751G6KB25I Overview

In this case, the memory type of the device can be classified as Volatile. Case Tray is available. An embedded 84-TFBGA case surrounds memory ics. It is estimated that the memory size on the chip is 512Mb 32M x 16. As with most mainstream devices, this one uses DRAM-format memory. Due to its wide temperature range of -40°C~95°C TC, this device is well suited to a wide range of applications that require high performance. With 1.7V~1.9V as the supply voltage, it is capable of handling memory ics. It is recommended to mount it in the Surface Mount mounting type. It is planted on the chip with 84 terminations. It supports up to 1 functions for comprehensive operation. There is a requirement for 1.8V to be supplied to this ic memory chip in order to operate. In order to operate effectively, the memory rotates at a clock frequency within a range of 400MHz. The ic memory chip comes in a package with 84 pins that allows it to be connected to a computer. The memory device has a total of 84 pins, thus indicating that it has a total of 84 memory locations. It is noted that the operating supply voltage of this memory is 1.8V. This chip uses Surface Mount mounting, a straightforward, high-efficiency method of mounting. It is rated 165mA for its nominal supply current when it comes to the memory component. This chip is not only loaded with advantages, but it also comes with AUTO/SELF REFRESH, which boosts the performance of your system. Several ports on this chip are used to access one memory address for reading and writing. I/O port addresses in this device are mapped to COMMON bits from the device's memory. It is recommended that this memory run at a maximum frequency of 800MHz.
