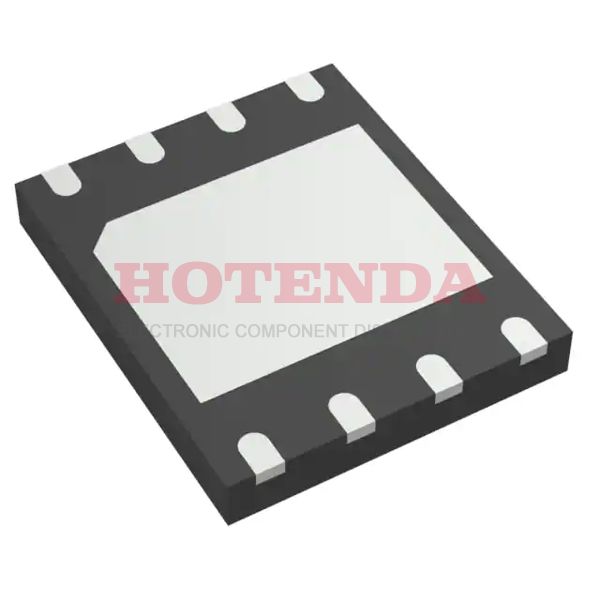

W25Q16CVZPIG Overview
Non-Volatile is the type of memory it has. In addition, memory ics is available in a Tube case as well. In the case of 8-WDFN Exposed Pad, it is embedded within the case. Memory size on the chip is 16Mb 2M x 8. In this device, the memory is of the FLASH-format, which is a popular format in the mainstream computing sector. Featuring an extended operating temperature range of -40°C~85°C TA, this device allows it to be used in a variety of demanding applications. The supply voltage can be up to 2.7V~3.6V. It is recommended that the mounting type be Surface Mount. As you can see from the diagram, the chip is planted with 8 terminations. This part supports as many as 1 functions for the comprehensive working procedure. A voltage of 3V is required for the operation of this memory device. The memory has a clock frequency rotation within 104MHz. It is encased in an 8-pin package that contains this ic memory chip. The memory device has 8 pins, which means that it has 8 memory locations, which indicates it is an 8-bit device. In this chip, Surface Mount mounting is used, a straightforward, high-efficiency mounting method. As far as its nominal supply current is concerned, this memory component carries a rating of 18mA. This memory chip requires a mere 3/3.3V of power. Its target applications rely heavily on the SpiFlash? series memory devices. The SPI-type serial bus this memory integrates with is helpful for transferring data to the CPU. A programming voltage of 2.7V is needed to alter the state of certain nonvolatile memory arrays.
W25Q16CVZPIG Features
Package / Case: 8-WDFN Exposed Pad
8 Pins
W25Q16CVZPIG Applications
There are a lot of Winbond Electronics W25Q16CVZPIG Memory applications.
- Camcorders
- cell phones
- networking
- personal computers
- workstations,
- Cache memory
- data buffer
- mainframes
- multimedia computers
- main computer memory
