SMDTC04150TB00KQ00

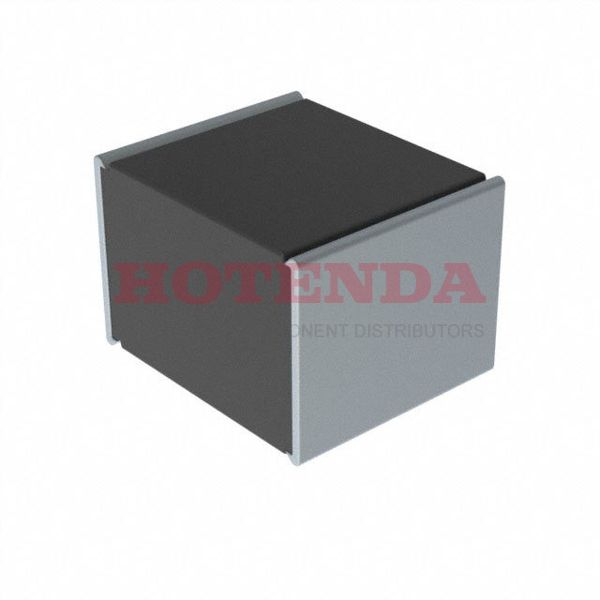

  • SMDTC04150TB00KQ00 - 1.5μF Film Capacitor ±10% 2824 (7260 Metric) Solder Pads 63V-DC 40V-AC Polyester, Polyethylene Terephthalate (PET), Metallized
  • SMDTC04150TB00KQ00 - 1.5μF Film Capacitor ±10% 2824 (7260 Metric) Solder Pads 63V-DC 40V-AC Polyester, Polyethylene Terephthalate (PET), Metallized

SMDTC04150TB00KQ00

SMDTC04150TB00KQ00

WIMA

1.5μF Film Capacitor ±10% 2824 (7260 Metric) Solder Pads 63V-DC 40V-AC Polyester, Polyethylene Terephthalate (PET), Metallized

SOT-23

SMDTC04150TB00KQ00 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 11 Weeks
Mounting Type Surface Mount
Package / Case 2824 (7260 Metric)
Number of Pins 2
Dielectric MaterialPolyester, Polyethylene Terephthalate (PET), Metallized
Operating Temperature-55°C~100°C
PackagingTape & Reel (TR)
Published 2010
Size / Dimension 0.283Lx0.240W 7.20mmx6.10mm
Tolerance ±10%
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Pads
Applications General Purpose
Capacitance 1.5μF
Voltage - Rated DC 63V
Depth 6.1mm
Voltage - Rated AC 40V
Case Code (Metric) 7260
Case Code (Imperial) 2824
Lead Pitch 6.5mm
Dielectric PET
Height 5mm
Height Seated (Max) 0.209 5.30mm
REACH SVHC No SVHC
RoHS StatusROHS3 Compliant
In-Stock:3267 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$1.691700$1.6917
10$1.595943$15.95943
100$1.505607$150.5607
500$1.420384$710.192
1000$1.339984$1339.984

SMDTC04150TB00KQ00 Product Details

SMDTC04150TB00KQ00 Overview


-55°C~100°C is the maximum temperature at which the device can operate.

SMDTC04150TB00KQ00 Features



SMDTC04150TB00KQ00 Applications


There are a lot of WIMA SMDTC04150TB00KQ00 applications of film capacitors.

  • Switch-mode power supplies
  • Filters
  • RFI for automotive
  • Industrial and automotive inverters
  • Satellite TV
  • VCO's
  • Matching networks
  • Lighting
  • Compact fluorescent lamps (CFL)
  • Coupling, decoupling
