FKP2C022201J00HSSD

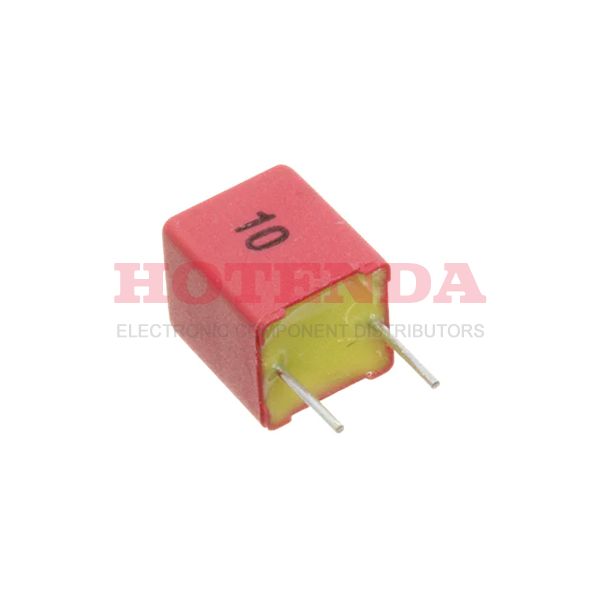

  • FKP2C022201J00HSSD - 0.022μF Film Capacitor ±2.5% Radial PC Pins 63V-DC 40V-AC Polypropylene (PP)
  • FKP2C022201J00HSSD - 0.022μF Film Capacitor ±2.5% Radial PC Pins 63V-DC 40V-AC Polypropylene (PP)

FKP2C022201J00HSSD

FKP2C022201J00HSSD

WIMA

0.022μF Film Capacitor ±2.5% Radial PC Pins 63V-DC 40V-AC Polypropylene (PP)

SOT-23

FKP2C022201J00HSSD Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 11 Weeks
Mounting Type Through Hole
Package / Case Radial
Surface MountNO
Terminal Shape WIRE
Dielectric MaterialPolypropylene (PP)
Operating Temperature-55°C~100°C
PackagingBulk
Size / Dimension 0.283Lx0.283W 7.20mmx7.20mm
Tolerance ±2.5%
JESD-609 Code e3
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 2
Termination PC Pins
Terminal Finish Tin (Sn)
Applications High Frequency, Switching; High Pulse, DV/DT
Additional FeatureRATED AC VOLTAGE (V): 40
HTS Code8532.25.00
Capacitance 0.022μF
Voltage - Rated DC 63V
Voltage - Rated AC 40V
Lead Pitch 5mm
Capacitor Type FILM CAPACITOR
Dielectric PP
Lead Spacing0.197 5.00mm
Size Code 2828
Dissipation Factor3 %
Height 8.5mm
Height Seated (Max) 0.335 8.50mm
Length 7.2mm
Width 7.2mm
RoHS StatusROHS3 Compliant
In-Stock:9918 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$0.708318$0.708318
10$0.668225$6.68225
100$0.630400$63.04
500$0.594717$297.3585
1000$0.561054$561.054

FKP2C022201J00HSSD Product Details

FKP2C022201J00HSSD Overview


0.197 5.00mm is the lead spacing of this electrical device.Devices with a -55°C~100°C temperature capability can be operated.

FKP2C022201J00HSSD Features



FKP2C022201J00HSSD Applications


There are a lot of WIMA FKP2C022201J00HSSD applications of film capacitors.

  • Mobile communications
  • Test and measuring equipment
  • Satellite TV
  • Global positioning systems
  • Compact fluorescent lamps (CFL)
  • Audio/video equipment
  • Blocking
  • Electronic ballasts
  • Lighting
  • RF Modules
