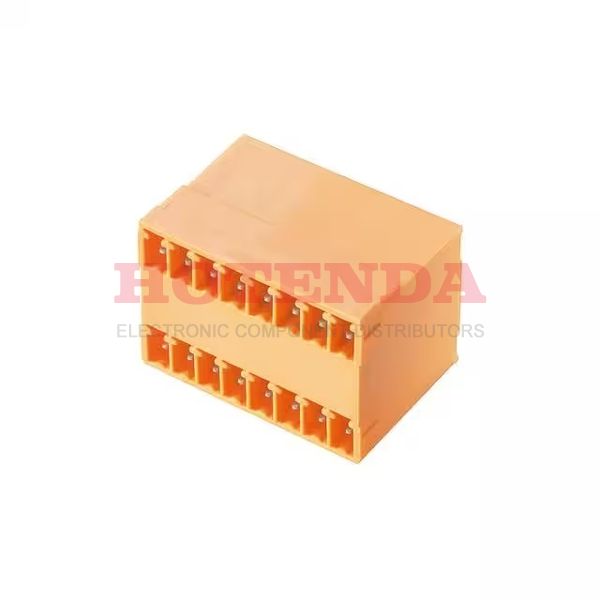

1972860000

1972860000

1972860000

Weidmüller

1972860000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

SOT-23

1972860000 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 12 Weeks
Contact MaterialCopper Alloy
Mounting Type Through Hole
Insulation Material Nylon
Housing Material Polyamide (PA), Nylon, Glass Filled
Operating Temperature-50°C~120°C
PackagingBulk
Series Omnimate SC
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 18
Color Orange
Number of Rows 2
Voltage - Rated 300V
Pitch 0.150 3.81mm
Ingress ProtectionIP20
Insulation Height 0.894 22.71mm
Current Rating17.5A
Termination Style Solder
Approval Agency CSA, cURus
Contact Tail Length 0.126 3.20mm
Number of Levels 2
Contact Mating Finish Tin
Voltage - UL 300V
Number of Decks 2
Current - UL 10A
Voltage - IEC 320V
Positions Per Level 9
Number of Ways 18
Header Orientation 90°, Right Angle
Hole Diameter 1.2 mm
Material Flammability Rating UL94 V-0
RoHS StatusRoHS Compliant
Flammability Rating UL94 V-0
In-Stock:899 items

Pricing & Ordering

QuantityUnit PriceExt. Price
50$5.97620$298.81

1972860000 Product Details

1972860000 Overview


Through Hole is the mount type.An orange Bulk case is used to package the product.It is part of the Omnimate SC Series of products.-50°C~120°C Operating Temperature is the default.

1972860000 Features


Omnimate SC series

1972860000 Applications


There are a lot of Weidmüller 1972860000 Terminal Blocks applications.

  • Electrical substations
  • Automotive Electronics
  • Instrumentation
  • Military Technology
  • Medical technology
  • Data Technology
  • Telecommunications
  • LED municipal outdoor and street lighting
  • All Electrical Machinery
  • Communication
