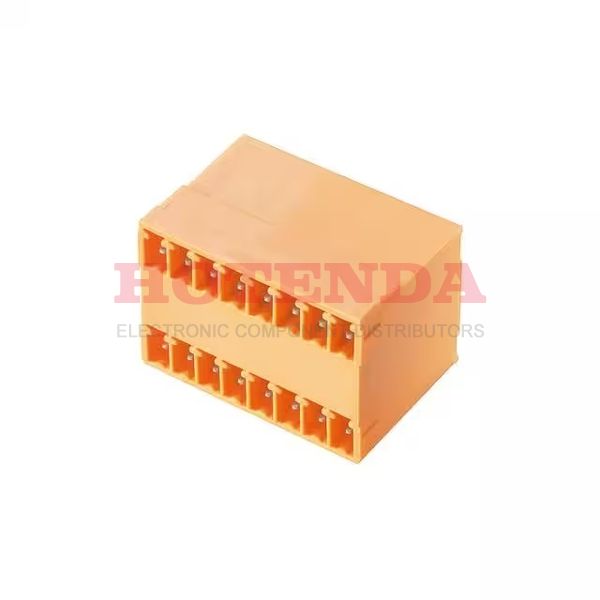

Name: 1972790000
Brand: Weidmüller
SKU: 1972790000
Price: 2.00000 USD
Availability: InStock

new-10%

1972790000

Manufacturer part number:1972790000

Manufacturer:Weidmüller

Description:1972790000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1972790000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Copper Alloy
Mounting Type	Through Hole
Insulation Material	Nylon
Housing Material	Polyamide (PA), Nylon, Glass Filled
Operating Temperature	-50°C~120°C
Packaging	Bulk
Series	Omnimate SC
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	4
Color	Orange
Voltage - Rated	300V
Pitch	0.150 3.81mm
Ingress Protection	IP20
Insulation Height	0.894 22.71mm
Current Rating	17.5A
Termination Style	Solder
Approval Agency	CSA, cURus
Contact Tail Length	0.126 3.20mm
Contact Mating Finish	Tin
Voltage - UL	300V
Current - UL	10A
Voltage - IEC	320V
Positions Per Level	2
Header Orientation	90°, Right Angle
Hole Diameter	1.2 mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1972790000 Product Details

1972790000 Overview

Mounting type Through Hole is selected for the device.To package the product, a Bulk case is used.There is a product in the Omnimate SC Series.It runs at -50°C~120°C Operating Temperature.There are a number of benefits that this part has in common with other Header, Male Pins, Shrouded (4 Side) products.
