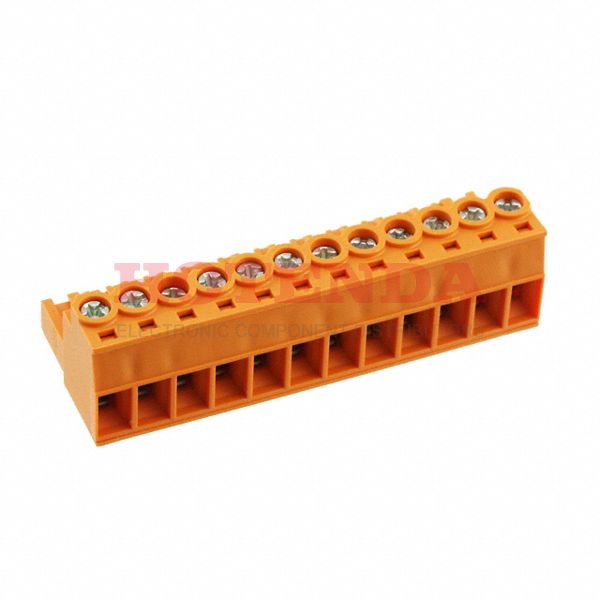

Name: 1954390000
Brand: Weidmüller
SKU: 1954390000
Price: 9.30000 USD
Availability: InStock

new

1954390000

Manufacturer part number:1954390000

Manufacturer:Weidmüller

Description:1954390000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1954390000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Copper Alloy
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polybutylene Terephthalate (PBT)
Operating Temperature	-50°C~100°C
Packaging	Box
Published	2010
Series	Omnimate BL
Feature	Retention Latches (Non-Wire Side)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Type	Plug, Female Sockets
Color	Orange
Number of Rows	1
Voltage - Rated	300V
Additional Feature	STANDARD: UL 94V-0
HTS Code	8536.69.40.40
Pitch	0.197 5.00mm
Insulation Height	0.632 16.05mm
Current Rating	15.5A
Termination Style	Screw - Clamping Yoke (Tension Sleeve)
Approval Agency	CSA, UR
Voltage	300V
Number of Levels	1
Current	10A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	12 AWG
Contact Mating Finish	Tin
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Current - UL	20A
Voltage - IEC	400V
Torque - Screw	0.4-0.5 Nm (3.5-4.4 Lb-In)
Number of Ways	12
Safety Approval	UL; CSA
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-4mm2
Current - IEC	23A
Number of Positions Per Level	12
Screw Size	M2.5
Stripping Length	7mm
Wire Cross Section	4 mm2
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1954390000 Product Details

1954390000 Overview

Free Hanging (In-Line) is the mount type.Packaged in a Box case.Omnimate BL Series product.Besides that, there's also STANDARD: UL 94V-0, to name a few.A number of aspects of its Retention Latches (Non-Wire Side) feature make it more powerful.Free Hanging is the mounting point for the part.Devices operate at -50°C~100°C operating temperatures.Other Plug, Female Sockets products share lots of benefits with this part.
