Name: 1949020000
Brand: Weidmüller
SKU: 1949020000
Price: 2.93000 USD
Availability: InStock

new-10%

1949020000

Manufacturer part number:1949020000

Manufacturer:Weidmüller

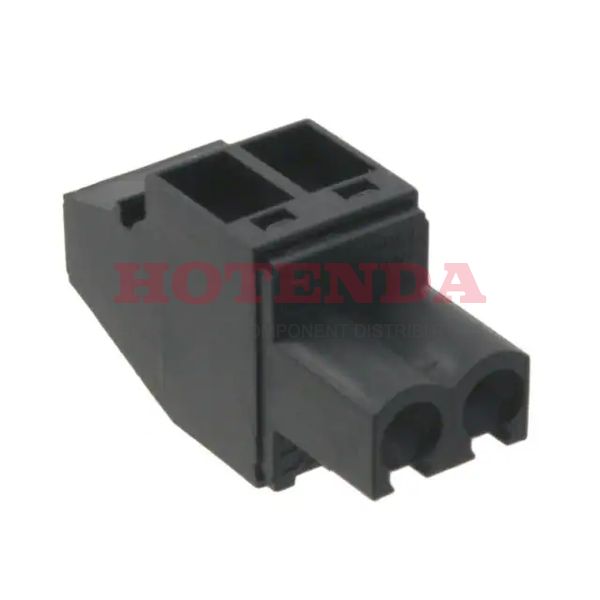

Description:Box 0.200 5.08mm Black 1 Levels Free Hanging (In-Line) Plug, Female Sockets Omnimate BL Polybutylene Terephthalate (PBT) Tin Copper Alloy

Case Package:SOT-23

Datasheet:1949020000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Copper Alloy
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polybutylene Terephthalate (PBT)
Operating Temperature	-50°C~100°C
Packaging	Box
Series	Omnimate BL
Published	2010
Feature	Retention Latches (Non-Wire Side)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Terminal Block
Type	Plug, Female Sockets
Color	Black
Number of Rows	1
Voltage - Rated	300V
Additional Feature	STANDARD: UL 94V-0
HTS Code	8536.69.40.40
Pitch	0.200 5.08mm
Insulation Height	0.555 14.10mm
Current Rating	13A
Termination Style	Screw - Clamping Yoke (Tension Sleeve)
Approval Agency	CSA, UR
Voltage	300V
Number of Levels	1
Current	10A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	12 AWG
Wire/Cable Gauge	12 AWG
Number of Poles	2
Contact Mating Finish	Tin
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Current - UL	20A
Voltage - IEC	400V
Torque - Screw	0.4-0.5 Nm (3.5-4.4 Lb-In)
Number of Ways	2
Safety Approval	UL; CSA
Plug Wire Entry	270°
Wire Gauge or Range - mm²	0.2-4mm2
Current - IEC	23A
Screw Size	M2.5
Stripping Length	7mm
Material Flammability Rating	UL94 V-0
REACH SVHC	Unknown
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1949020000 Product Details

1949020000 Overview

Packaging is Terminal Block.Free Hanging (In-Line) is the mounting type.Packaging for the product is carried out via a Box case.As a product of the Omnimate BL Series, it can be found in this category.There are also other features such as STANDARD: UL 94V-0, to name only a few.With its Retention Latches (Non-Wire Side) feature, it is more powerful in many ways.In this case, Free Hanging mounts the part.The device is operating at -50°C~100°C Operating Temperature.There are a lot of similarities between this part and other Plug, Female Sockets products.
