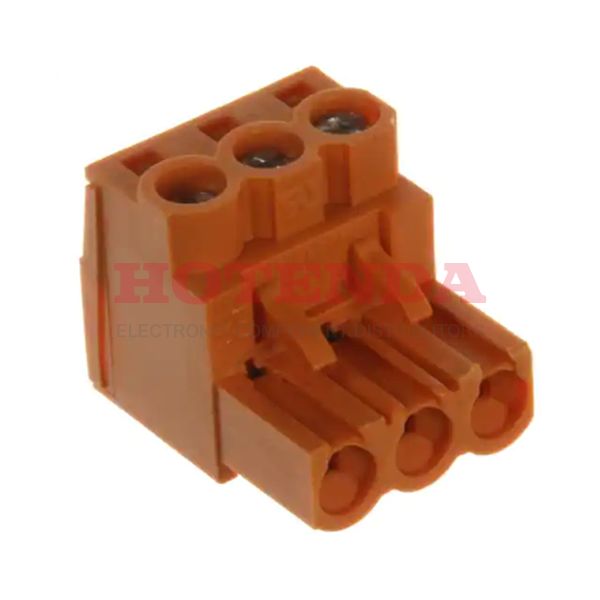

Name: 1943590000
Brand: Weidmüller
SKU: 1943590000
Price: 3.59000 USD
Availability: InStock

new-10%

1943590000

Manufacturer part number:1943590000

Manufacturer:Weidmüller

Description:1943590000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1943590000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	16 Weeks
Contact Material	Copper Alloy
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polybutylene Terephthalate (PBT)
Operating Temperature	-50°C~100°C
Packaging	Box
Published	2010
Series	Omnimate BL
Feature	Retention Latches (Non-Wire Side)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Type	Plug, Female Sockets
Color	Orange
Number of Rows	1
Gender	Female
Voltage - Rated	300V
Additional Feature	PBT, STANDARD: UL 94V-0
Pitch	0.200 5.08mm
Orientation	Right Angle
Insulation Height	0.632 16.05mm
Current Rating	15.5A
Termination Style	Screw - Clamping Yoke (Tension Sleeve)
Approval Agency	CSA, UR
Number of Contacts	3
Voltage	300V
Number of Levels	1
Current	10A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	12 AWG
Wire/Cable Gauge	26 AWG
Contact Mating Finish	Tin
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Current - UL	20A
Voltage - IEC	400V
Torque - Screw	0.4-0.5 Nm (3.5-4.4 Lb-In)
Number of Ways	3
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-4mm2
Current - IEC	23A
Screw Size	M2.5
Stripping Length	7mm
Wire Cross Section	4 mm2
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1943590000 Product Details

1943590000 Overview

Free Hanging (In-Line) is the mount type.We package the product with a Box case.Omnimate BL Series product.Additionally, there are other features, such as PBT, STANDARD: UL 94V-0.There are a number of advantages to its Retention Latches (Non-Wire Side) feature.In this case, Cable, Free Hanging mounts the part.Device runs in -50°C~100°C operating temperature.There are many benefits shared between this part and other Plug, Female Sockets products.
