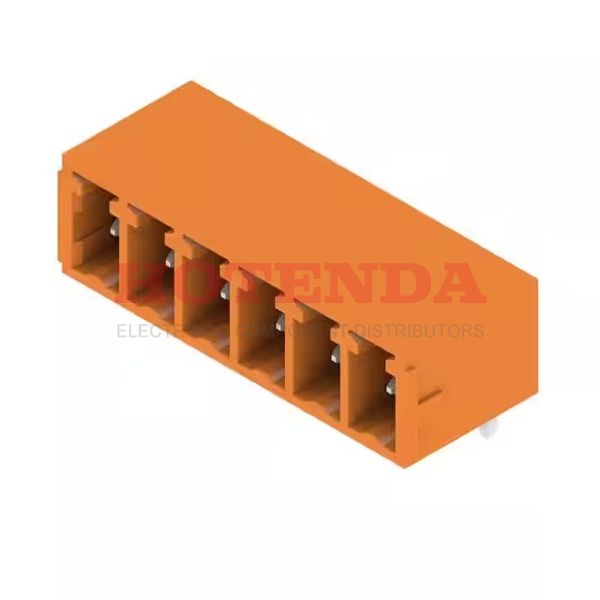

Name: 1942100000
Brand: Weidmüller
SKU: 1942100000
Price: 1.81000 USD
Availability: InStock

new-10%

1942100000

Manufacturer part number:1942100000

Manufacturer:Weidmüller

Description:1942100000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1942100000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Copper Alloy
Mounting Type	Through Hole
Insulation Material	Nylon
Housing Material	Polyamide (PA), Nylon, Glass Filled
Operating Temperature	-50°C~120°C
Packaging	Bulk
Series	Omnimate SC
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	6
Color	Orange
Number of Rows	1
Voltage - Rated	300V
Additional Feature	STANDARD: UL 94V-0
Pitch	0.150 3.81mm
Ingress Protection	IP20
Insulation Height	0.278 7.06mm
Current Rating	17.5A
Termination Style	Solder
Approval Agency	CSA, cURus
Contact Tail Length	0.126 3.20mm
Number of Levels	1
Contact Mating Finish	Tin
Voltage - UL	300V
Number of Decks	1
Current - UL	10A
Voltage - IEC	320V
Number of Ways	6
Safety Approval	UL
Header Orientation	90°, Right Angle
Hole Diameter	1.2 mm
Material Flammability Rating	UL94 V-0
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1942100000 Product Details

1942100000 Overview

A Through Hole mounting type is specified for the device.To package the product, a Bulk case is used.Among the products in the Omnimate SC Series, it is one of the most popular.As well as STANDARD: UL 94V-0, to name a few.This device operates at a temperature of -50°C~120°C.Other Header, Male Pins, Shrouded (4 Side) products benefit from this part as well.
