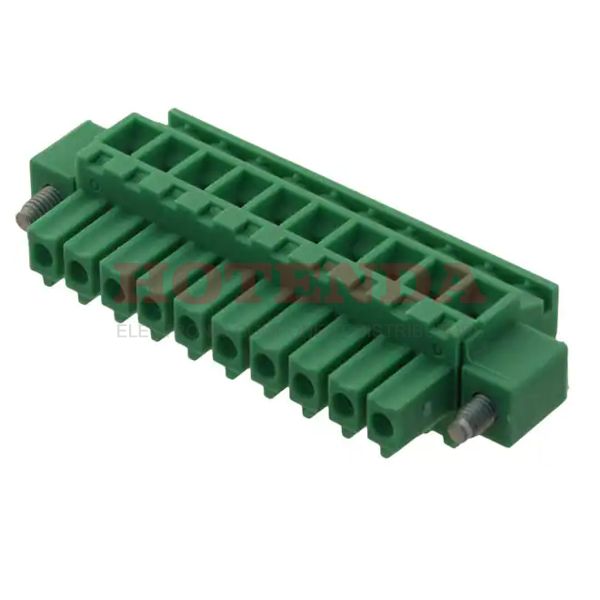

Name: 1799230000
Brand: Weidmüller
SKU: 1799230000
Price: 10.56000 USD
Availability: InStock

new

1799230000

Manufacturer part number:1799230000

Manufacturer:Weidmüller

Description:1799230000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1799230000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Copper Alloy
Mount	Free Hanging, Panel
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon, Glass Filled
Operating Temperature	-50°C~120°C
Packaging	Bulk
Published	2003
Series	Omnimate BC
Feature	Mating Flange
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	Not Applicable
Termination	Screw
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Gender	Male
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.150 3.81mm
Orientation	Straight
Ingress Protection	IP20
Insulation Height	0.411 10.44mm
Termination Style	Screw - Clamping Yoke (Tension Sleeve)
Number of Contacts	10
UL Flammability Code	94V-0
Insulation Resistance	5MOhm
Voltage	300V
Number of Levels	1
Current	10A
Wire Gauge (Max)	28 AWG
Wire Gauge (Min)	16 AWG
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	16-28 AWG
Voltage - IEC	320V
Torque - Screw	0.2-0.25 Nm (1.7-2.2 Lb-In)
Plug Wire Entry	270°
Wire Gauge or Range - mm²	0.2-1.5mm2
Wire Strip Length	7mm
Current - IEC	17.5A
Screw Size	M2
Height	19.1mm
Width	10.4mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1799230000 Product Details

1799230000 Overview

A Free Hanging (In-Line) mounting type is specified for the device.To package the product, a Bulk case is used.The product belongs to the Omnimate BC Series.There are a number of advantages to its Mating Flange feature.There is a mounting hole at Free Hanging, Panel.As a result, the device runs at -50°C~120°C Operating Temperature.This part shares lots of benefits with other Plug, Female Sockets products.
