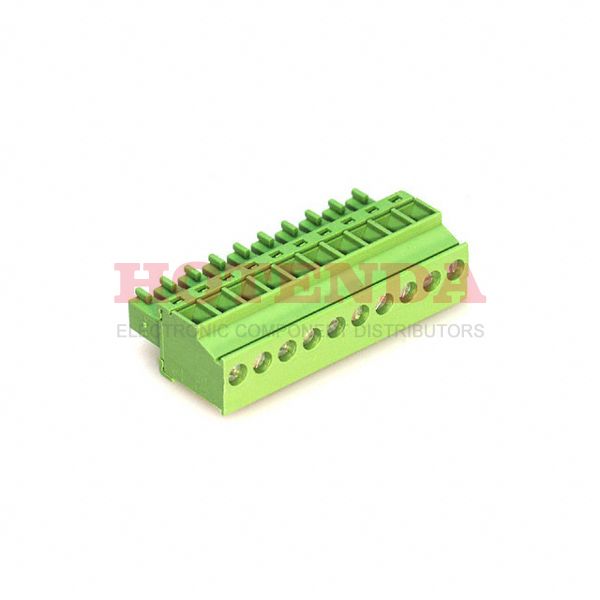

Name: 1798750000
Brand: Weidmüller
SKU: 1798750000
Price: 7.37000 USD
Availability: InStock

new-10%

1798750000

Manufacturer part number:1798750000

Manufacturer:Weidmüller

Description:1798750000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1798750000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Copper Alloy
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon, Glass Filled
Operating Temperature	-50°C~120°C
Packaging	Bulk
Published	2003
Series	Omnimate BC
Pbfree Code	yes
Part Status	Active
Termination	Screw
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Gender	Male
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.150 3.81mm
Orientation	Right Angle
Ingress Protection	IP20
Insulation Height	0.411 10.44mm
Termination Style	Screw - Clamping Yoke (Tension Sleeve)
Number of Contacts	10
UL Flammability Code	94V-0
Insulation Resistance	5MOhm
Voltage	300V
Number of Levels	1
Current	10A
Wire Gauge (Max)	28 AWG
Wire Gauge (Min)	16 AWG
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	16-28 AWG
Voltage - IEC	320V
Torque - Screw	0.2-0.25 Nm (1.7-2.2 Lb-In)
Plug Wire Entry	90°
Wire Gauge or Range - mm²	0.2-1.5mm2
Wire Strip Length	7mm
Current - IEC	17.5A
Screw Size	M2
Height	19.1mm
Width	10.4mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1798750000 Product Details

1798750000 Overview

Mounting type Free Hanging (In-Line) is assigned to the device.Packaging for the product is carried out via a Bulk case.It's part of the Omnimate BC Series.There is a mounting hole at Cable, Free Hanging.The device runs in -50°C~120°C Operating Temperature.Other Plug, Female Sockets products share lots of benefits with this part.
